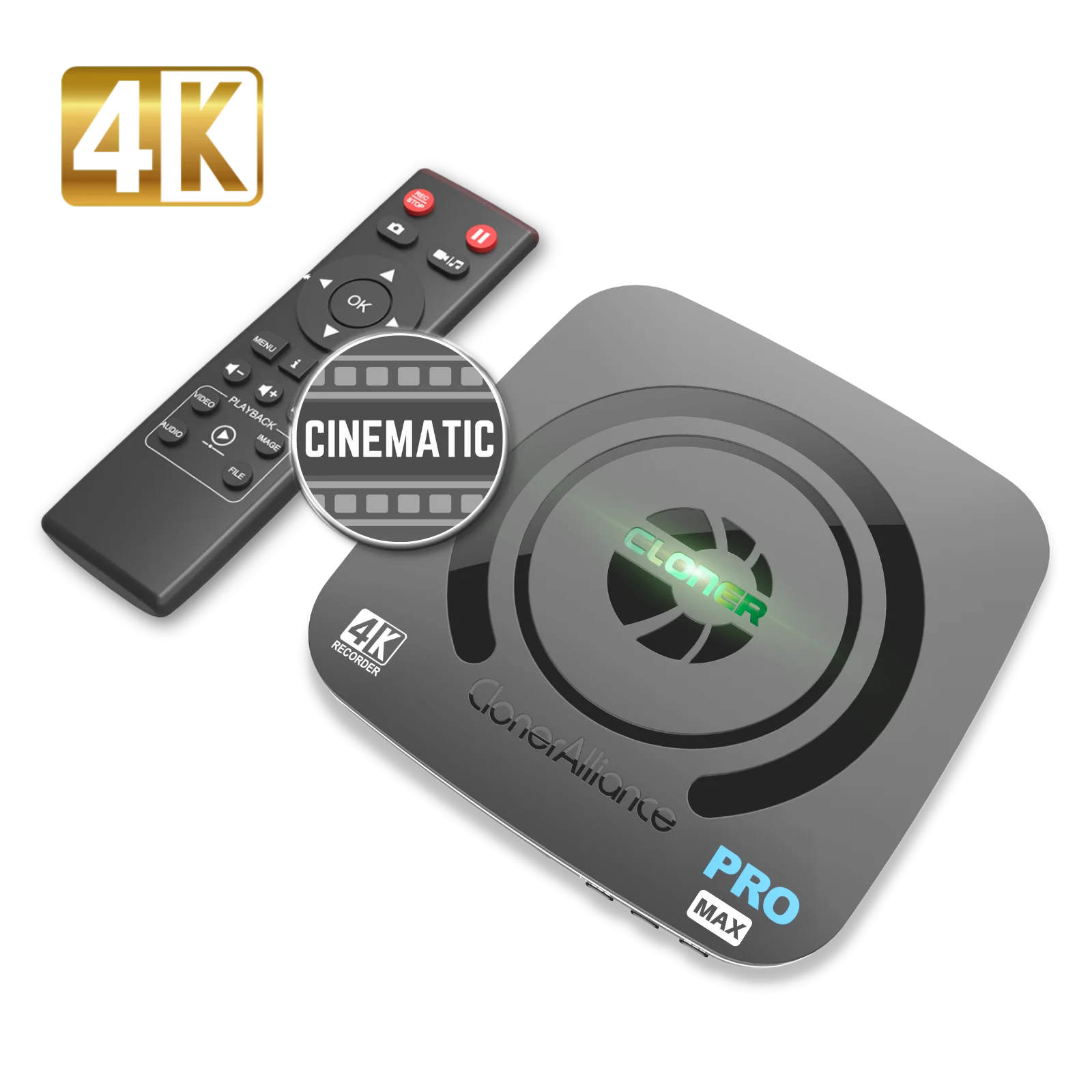

ClonerAlliance UHD Pro Max
Cinematic 4K Recorder. Up to 50Mbps. 4K@60fps Passthrough. Pause/Resume. Professional Audio.

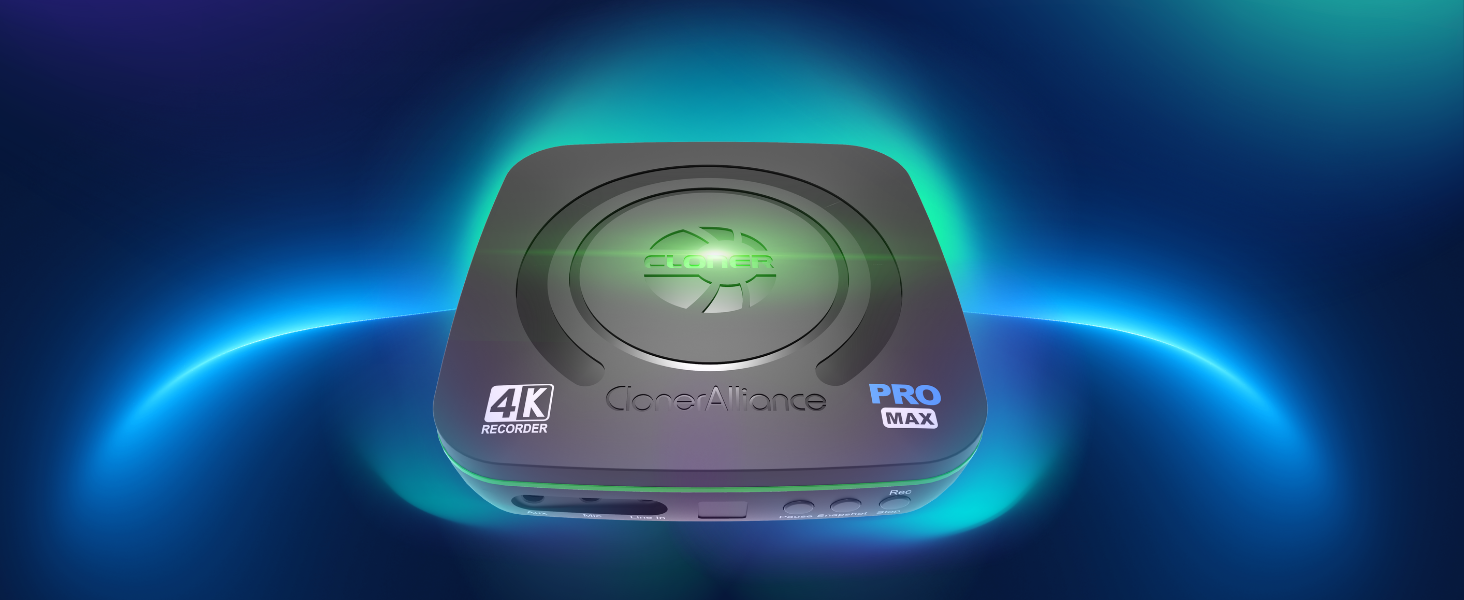

ClonerAlliance UHD Pro Max
The flagship 4K recorder — cinematic frame rates, professional audio in and out, up to 50Mbps. Record HDMI sources to USB storage or TF card without a PC.
ClonerAlliance UHD Pro Max is a professional standalone 4K video recorder with Cinematic-FPS recording at 4K@24fps (up to 4K@30fps) and up to 50Mbps encoding bitrate. Features 4K@60fps HDMI passthrough, H.265/H.264 encoding, pause/resume recording, independent MP3 audio recording, and scheduled recording. Record to USB flash drive, TF card, or external hard drive up to 8TB. USB 3.0 Type-C UVC interface supports up to 4K@60fps capture to PC. Multiple audio inputs including LINE IN, AUX, and MIC IN with 320kbps quality.
Professional Cinema-Quality Recording
Cinematic-FPS Recording
True cinema-quality 4K at 24fps (25fps EU), matching professional film standards. Up to 50Mbps encoding bitrate for exceptional detail. H.265/H.264 selectable encoding.
4K@60fps Passthrough
Full 4K@60fps HDMI passthrough for seamless viewing. Less than 100ms latency, ideal for gaming. Record and watch simultaneously.
Independent Audio Recording
Record MP3 audio directly from HDMI sources. LINE IN, AUX, and MIC IN with mixing capability. Crystal-clear 320kbps audio quality.
Smart Recording
Pause/resume recording to skip unwanted segments. Schedule up to 5 recordings (once, daily, weekly). Flexible storage: USB drive, TF card, or external HDD up to 8TB.

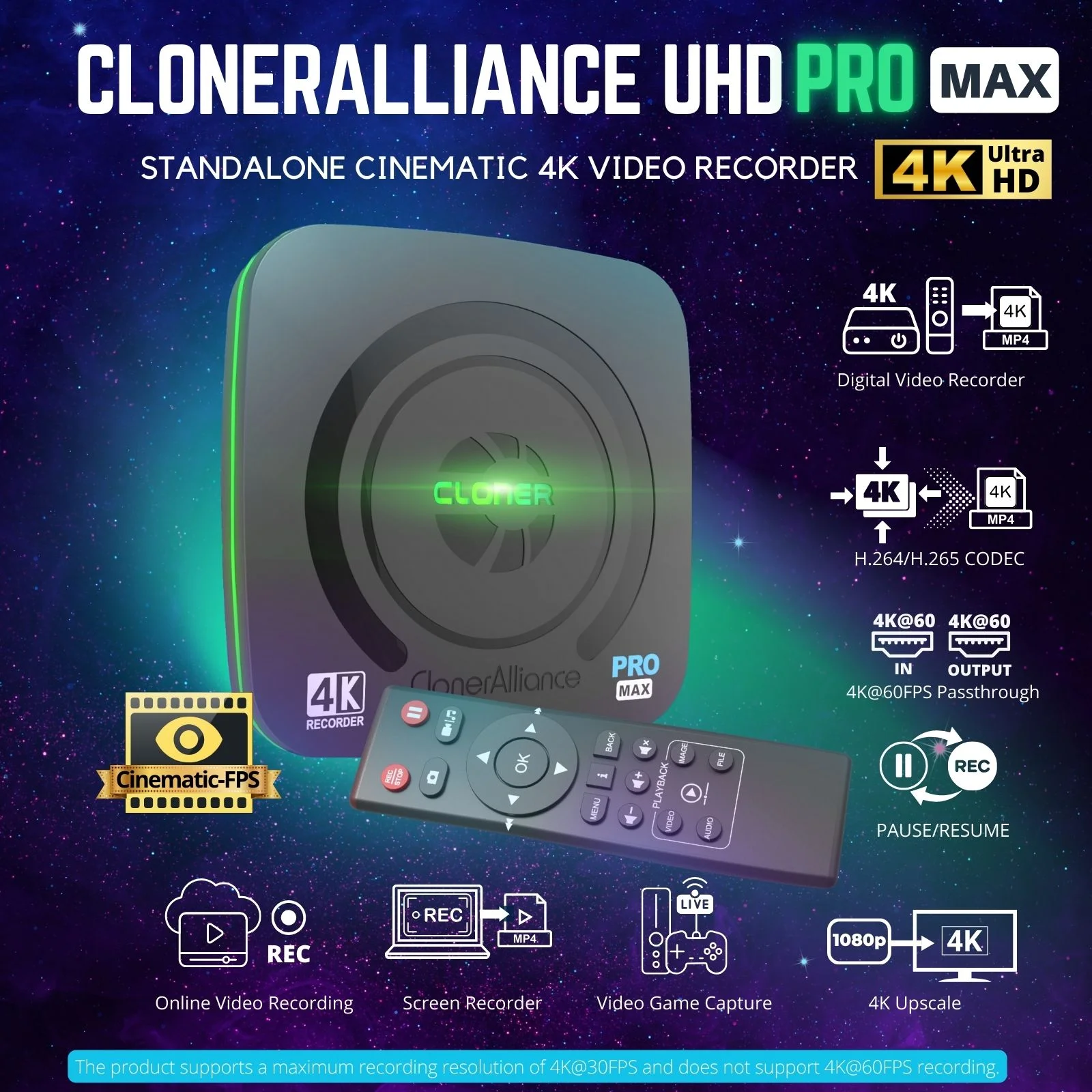

Cinematic Recording, Professional Results
Standalone 4K Cinematic-FPS Recorder with up to 50Mbps bitrate. No PC required — just hit REC and capture.
Cinema-Quality 4K at Your Fingertips
Capture authentic Cinematic-FPS footage at 4K@24fps — the same frame rate used in professional filmmaking. With up to 50Mbps encoding bitrate, every detail is preserved in stunning clarity.
- Cinematic-FPS: 4K@24fps (25fps EU/PAL)
- Up to 4K@30fps standalone recording
- Up to 50Mbps selectable bitrate (8/16/24/32/50 Mbps)
- No PC required — completely standalone
High-Bitrate Detail, Efficient Files
Choose H.265 for smaller file sizes or H.264 for maximum compatibility. Either way, you get up to 50Mbps bitrate for professional-quality footage that’s ready to edit.
- H.265 HEVC for efficient storage
- H.264 AVC for wide compatibility
- Edit-ready MP4 and TS files
- 1080p@60fps high-FPS recording supported

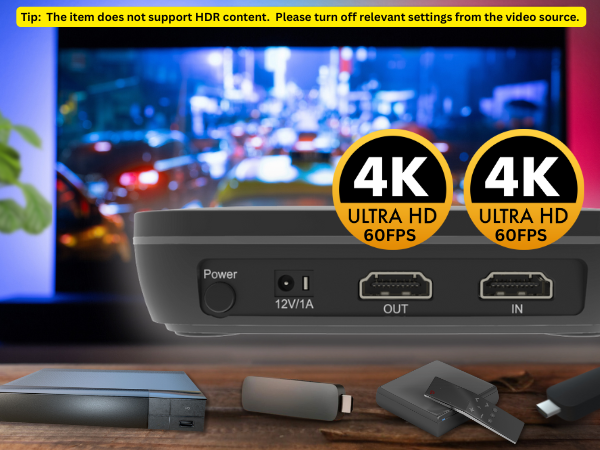

Watch in 4K@60fps While It Records
Full 4K@60fps HDMI passthrough keeps your viewing experience perfect while ClonerAlliance UHD Pro Max captures every moment. With less than 100ms latency, it’s ideal for gaming and live content.
- 4K@60fps HDMI passthrough
- Less than 100ms latency
- Play and record simultaneously
- Perfect for PS5, Xbox Series X/S, Switch
Stream to PC at Up to 4K@60fps
USB 3.0 Type-C UVC interface delivers up to 4K@60fps capture to your PC for live streaming on YouTube, Twitch, and Facebook. NV12, YUY2, and MJPEG formats supported.
- USB 3.0 Type-C UVC interface
- Up to 4K@60fps capture to PC
- Works with OBS Studio and more
- Windows, Mac, and Linux supported

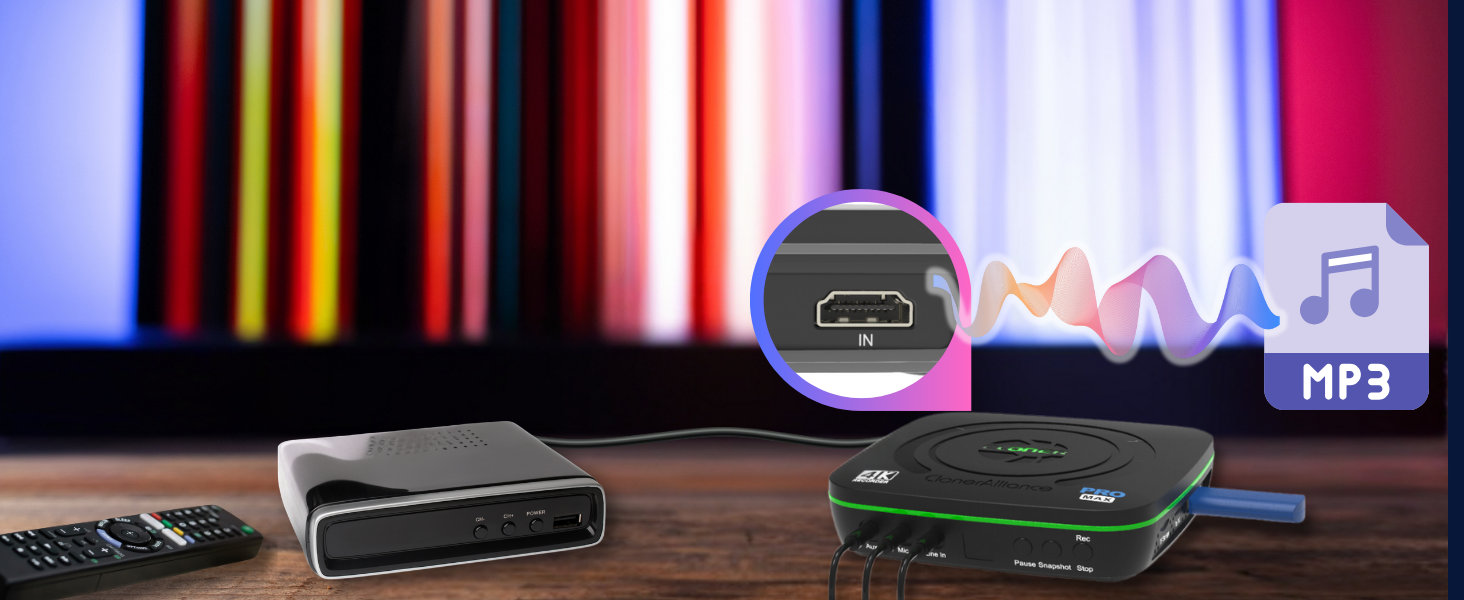

Professional Audio Recording & Mixing
Record independent MP3 audio from HDMI sources. Mix LINE IN, AUX, and MIC inputs with crystal-clear 320kbps quality. Perfect for commentary, voiceover, and podcasting.
Record Every Key Moment, Automatically
Set a plan and ClonerAlliance UHD Pro Max records on time. Wherever you are, it captures without missing. Schedule up to 5 recordings — once, daily, or weekly.
- Up to 5 scheduled recordings
- Once, Daily, or Weekly options
- Auto-start and auto-stop
- Never miss live streams or shows
Skip Unwanted Parts
Pause and resume anytime. ClonerAlliance UHD Pro Max saves one complete MP4, no later trimming or merging required. Perfect for long sessions or multi-part content creation.
- Pause & resume recording
- Single seamless MP4 file
- No post-editing required
- Skip ads, breaks, and downtime
One Recorder for Every Source
Compatible with PS5, Xbox, Switch, set-top boxes, DSLRs, camcorders, media players, and more. Store footage on USB drives, TF card, or external hard drives up to 8TB.
Important Notes
- ClonerAlliance UHD Pro Max does not support HDR content. Please turn off relevant settings from the video source.
- Any HDCP protected sources are NOT supported.

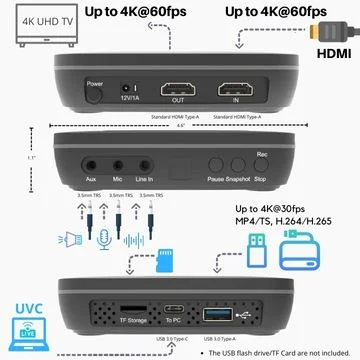

Technical Specifications
| Specification | |
|---|---|
| Video Recording Resolution | Max up to 3840 x 2160@30fps; Cinematic-FPS 4K@24fps (25fps EU) |
| Max Encoding Bitrate | Up to 50Mbps (Selectable: 8/16/24/32/50 Mbps) |
| Passthrough Latency | Less than 100ms |
| Encode Formats | H.265/H.264 |
| Recording File Format | MP4, TS |
| Audio Codec | AAC (128/192/320 Kbps) |
| Audio Recording | Independent MP3 audio recording supported |
| HDMI Input Resolution | Max up to 3840 x 2160@60fps |
| HDMI Output Resolution | Max up to 3840 x 2160@60fps |
| HDMI Version | 2.0 |
| HDCP | 2.2 |
| To PC Interface | USB 3.0 Type-C (UVC) |
| To PC Capture | Up to 3840 x 2160@60fps (NV12, YUY2, MJPEG) |
| To PC Supported OS | Windows, Mac OS, Linux |
| Storage Media | USB flash drive, External hard drive (up to 8TB), TF card |
| Audio Input Options | LINE IN, AUX, MIC IN with mixing capability |
| Recording Features | Pause/Resume, Scheduled Recording, Snapshot |
| Compatible File System | FAT32, NTFS, exFAT |
| OSD Language | English, Japanese, German, Italian, Thai, Chinese, Simplified Chinese |
| Dimensions | 118 x 118 x 28mm (4.6 x 4.6 x 1.1 in) |
| Weight | 263g (9.3oz) |
| Certification | CE, FCC |
| Compatible Video Sources | DVRs, Set top Boxes, Cable TV Receivers, OTA Boxes, Satellite Receivers, TV Tuners, DSLRs, Camcorders, DVD Players, Media players, TV Sticks, Endoscopes, Surgery Microscopes, Game Consoles, Laptops with HDMI OUT |

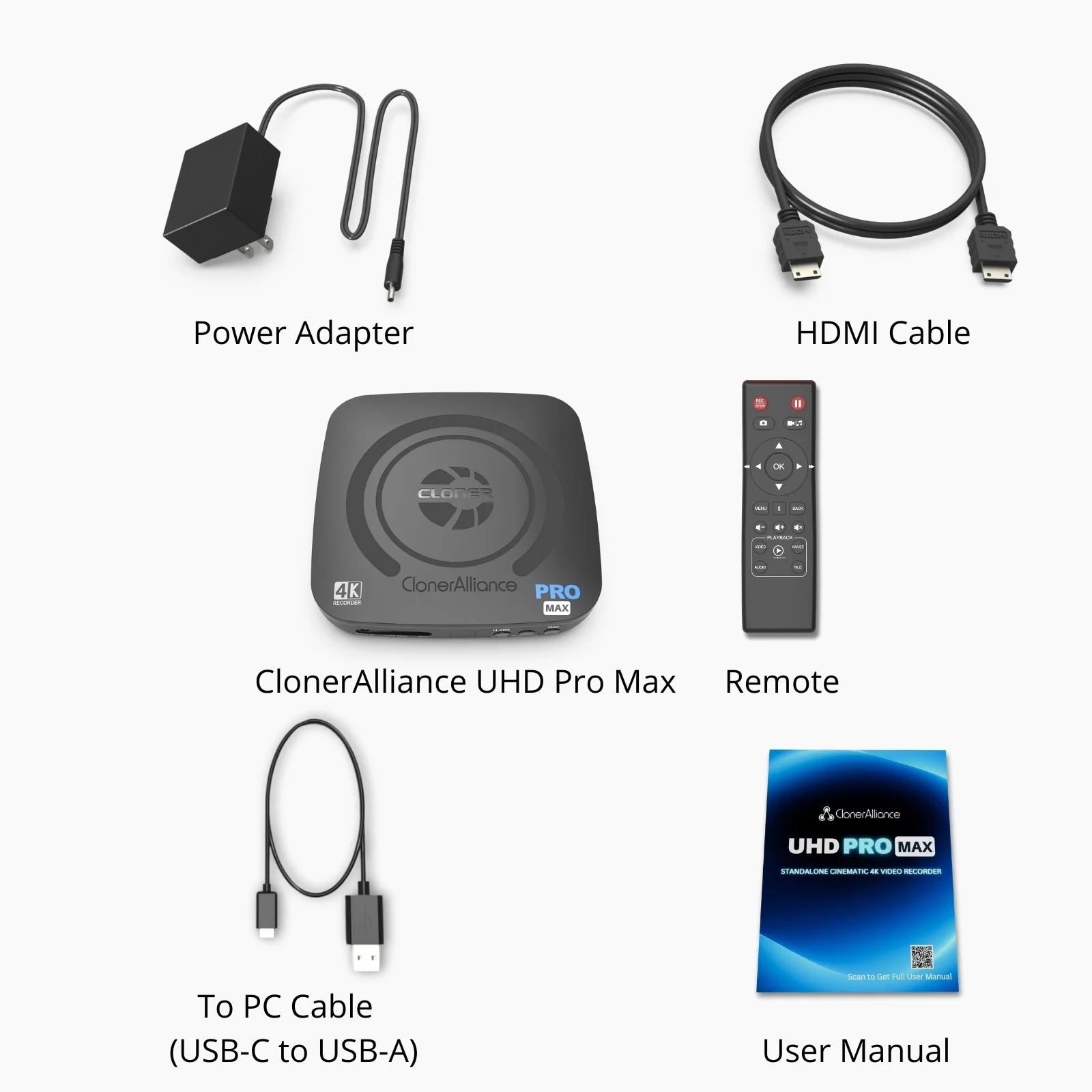

What’s in the Box
| Item | Description |
|---|---|
| ClonerAlliance UHD Pro Max | Main unit |
| Power Adapter | 12V/1A |
| HDMI Cable | Standard length |
| USB to Type-C Cable | For To PC mode |
| Remote Control | IR |
| Quick Start Guide | Printed manual |
FAQ
What's new in ClonerAlliance UHD Pro Max compared to UHD Pro?
Discover the major improvements and new features in the UHD Pro Max compared to its predecessor, the UHD Pro. For complete specifications, see technical-specifications-of-cloneralliance-uhd-pro-max.
Learn more →What resolutions does ClonerAlliance UHD Pro Max support?
ClonerAlliance UHD Pro Max supports a wide range of input and output resolutions, with enhanced capabilities for 4K@60fps passthrough and Cinematic-FPS recording. Please ensure your source device's output resolution matches one of the supported input resolutions listed below.
Learn more →How to set up ClonerAlliance UHD Pro Max for first-time use?
First-time setup guide for your ClonerAlliance UHD Pro Max device to ensure optimal performance and functionality. For detailed connection instructions, see connection-guide-cloneralliance-uhd-pro-max.
Learn more →Understanding Cinematic-FPS Recording with ClonerAlliance UHD Pro Max
Learn about Cinematic-FPS recording and how to achieve cinema-quality video capture with the UHD Pro Max. For detailed technical specifications, see technical-specifications-of-cloneralliance-uhd-pro-max.
Learn more →Storage options and compatibility for ClonerAlliance UHD Pro Max
Comprehensive guide to storage options, compatibility, and best practices for the UHD Pro Max. Support GPT and MBR, no limitation of storage capacity. We recommend using USB 3.0 standard storage devices or Class 10 TF(Micro SD) card to obtain a smooth and stable usage experience.
