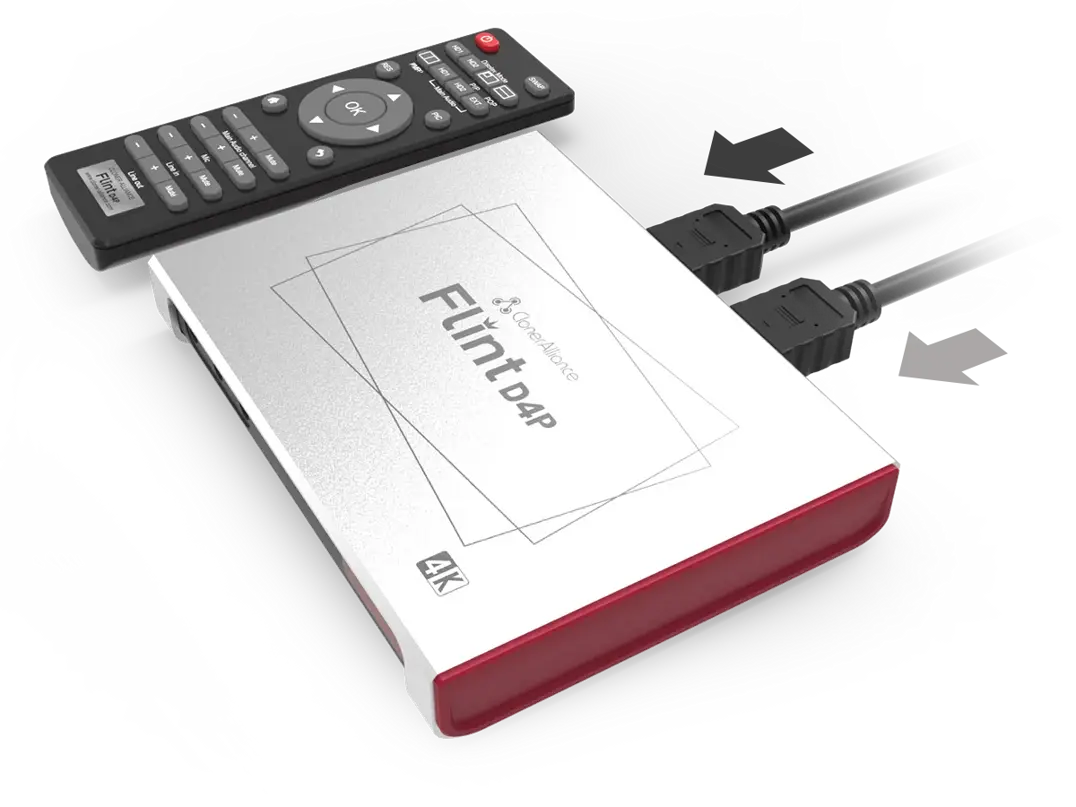

ClonerAlliance Flint D4P
4K@60fps and 2K@144fps game overlay live streaming with multiple display modes using remote control.
ClonerAlliance Flint D4P

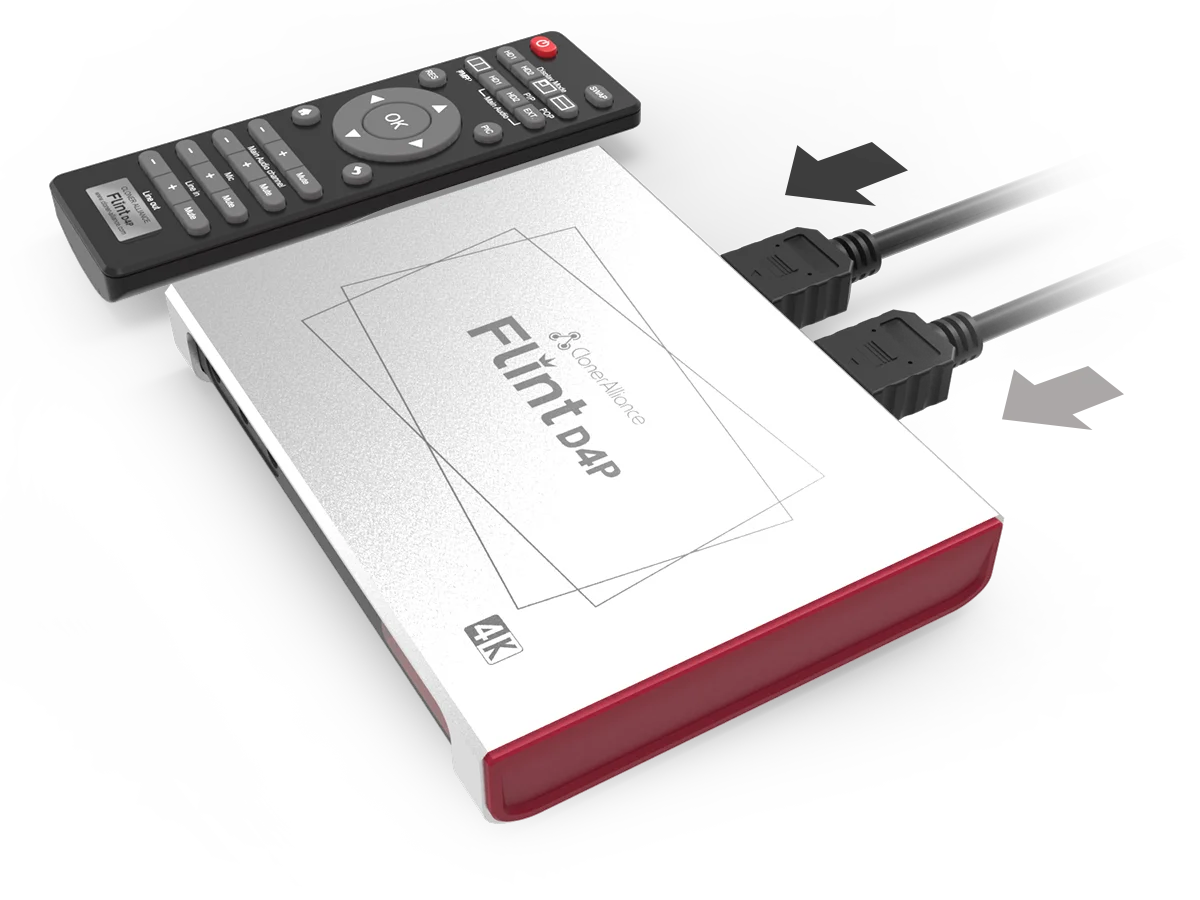

ClonerAlliance Flint D4P is a picture-in-picture 4K game capture device. It supports 4K@60fps and 2K@144fps game video input.
ClonerAlliance Flint D4P is a picture-in-picture 4K game capture device. It supports 4K@60fps and 2K@144fps game video input. With ClonerAlliance Flint D4P, you can capture dual 4K images with multiple PIP display modes, stream them to Facebook, YouTube, Twitch, ZOOM, Skype, etc and record as 1080p@60fps. Integrated with UVC standard and high performance Type C port, you can easily record and stream HDMI videos from game consoles, set-top boxes, webcams, DSLRs to Mac, Windows, Linux or Android. Thanks to the Line In and external audio input integration with ClonerAlliance Flint D4P, you can add your own voice into the gameplay in time, mixing line audio and mic audio to gaming smoothly, as well as remove the original audio from a video and add your own audio.
Key Features

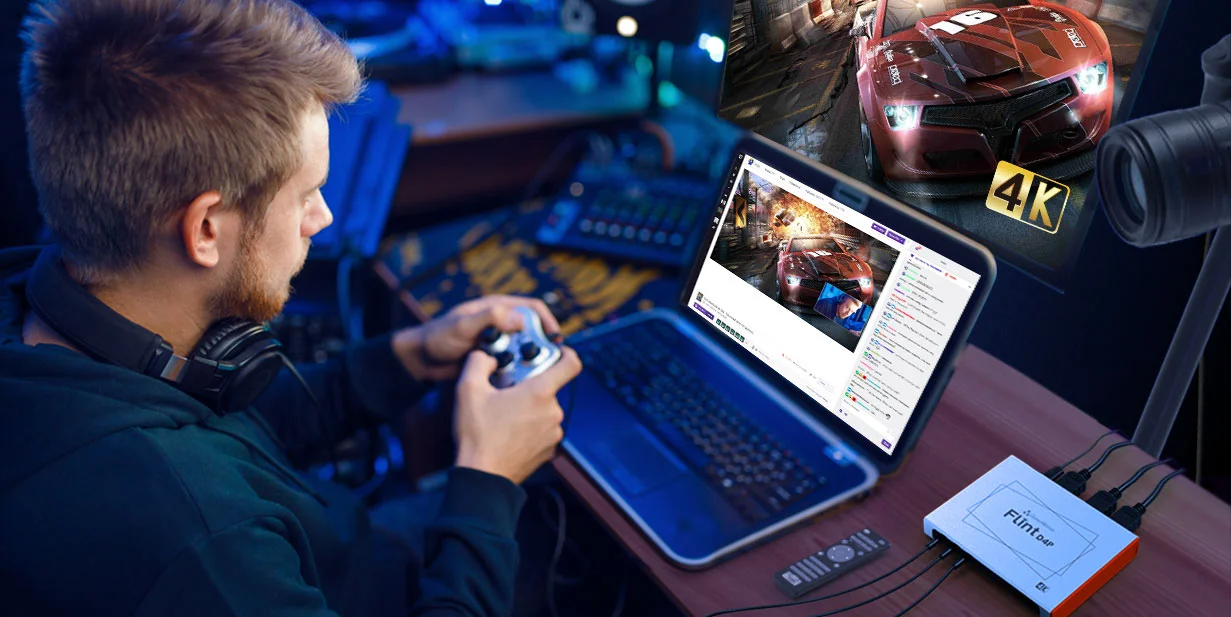

4K/2K Input and Ultra Low Latency

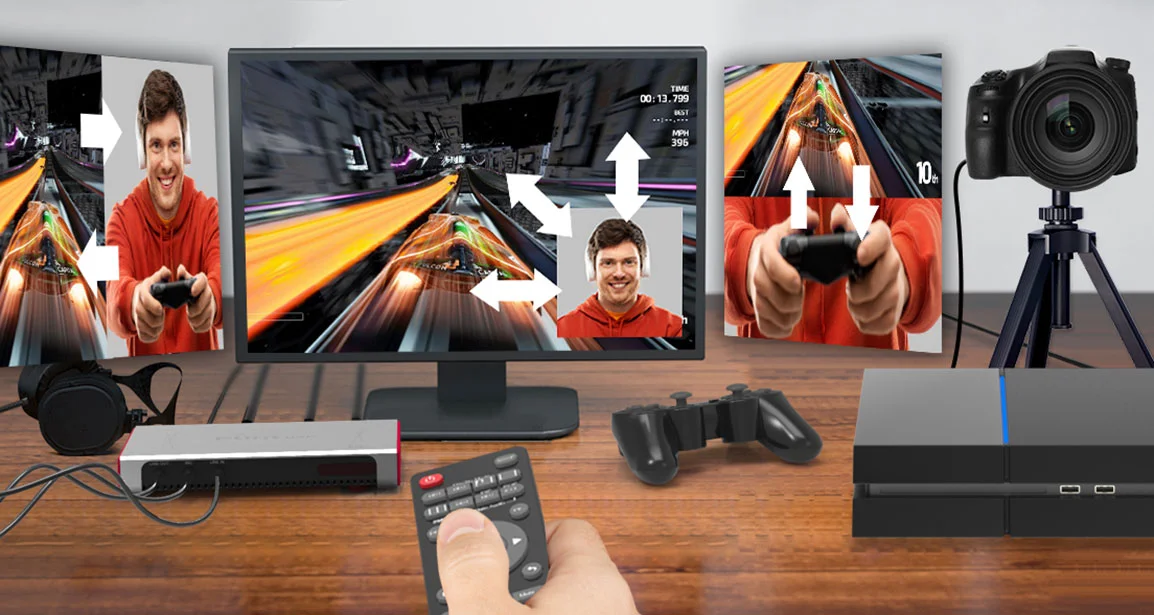

Multiple overlay display modes for streaming

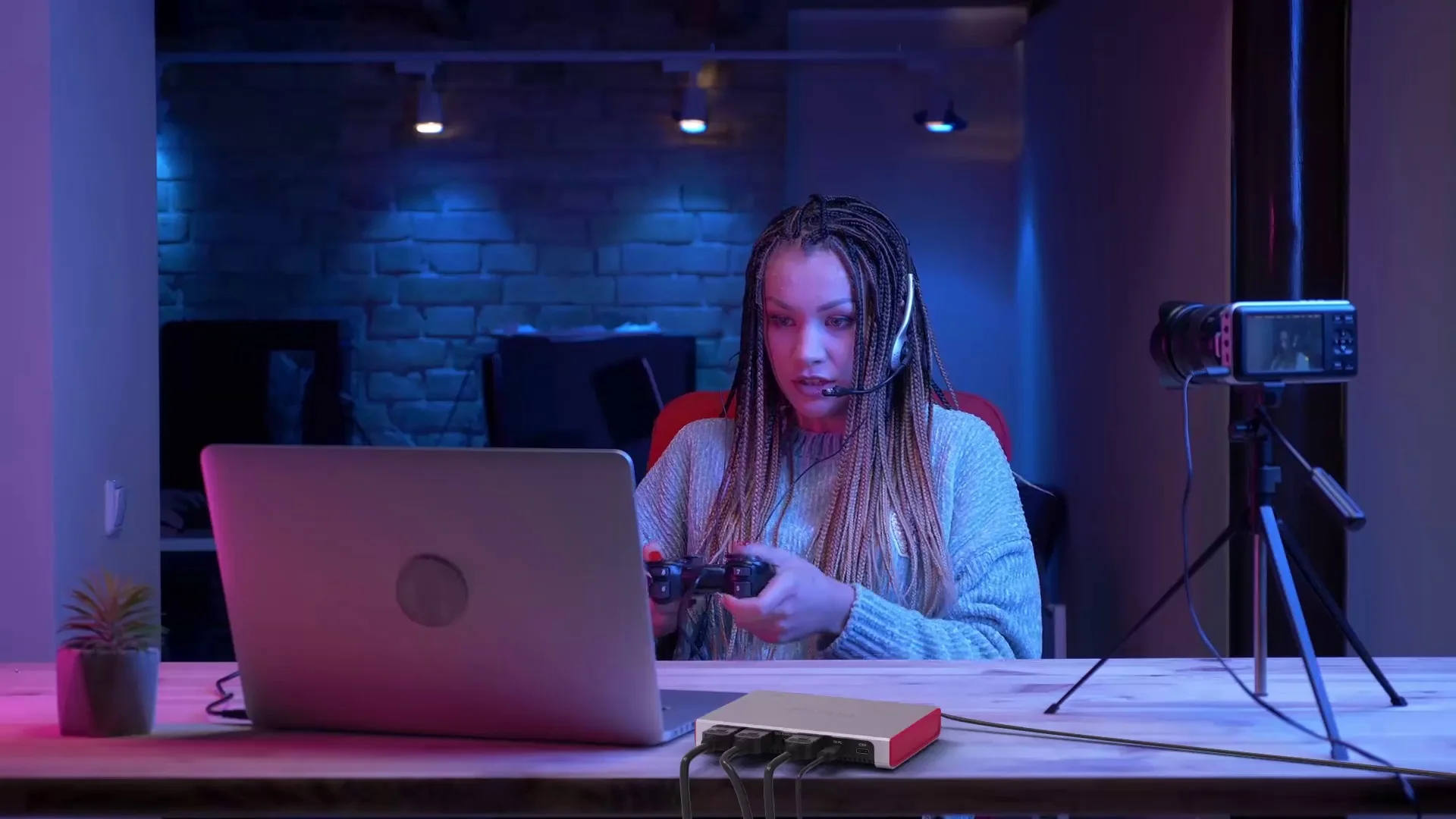

Ultra Low Latency with USB 3.0 Type C. Live Commentary.
Plug and Play. Windows/Mac/Linux/Android Supported.
Dual 4K HDMI inputs
Multiple overlay display modes for streaming
Specifications
| Output format | MJPEG,YUY2 |
|---|---|
| Video standards (input) | NTSC, PAL |

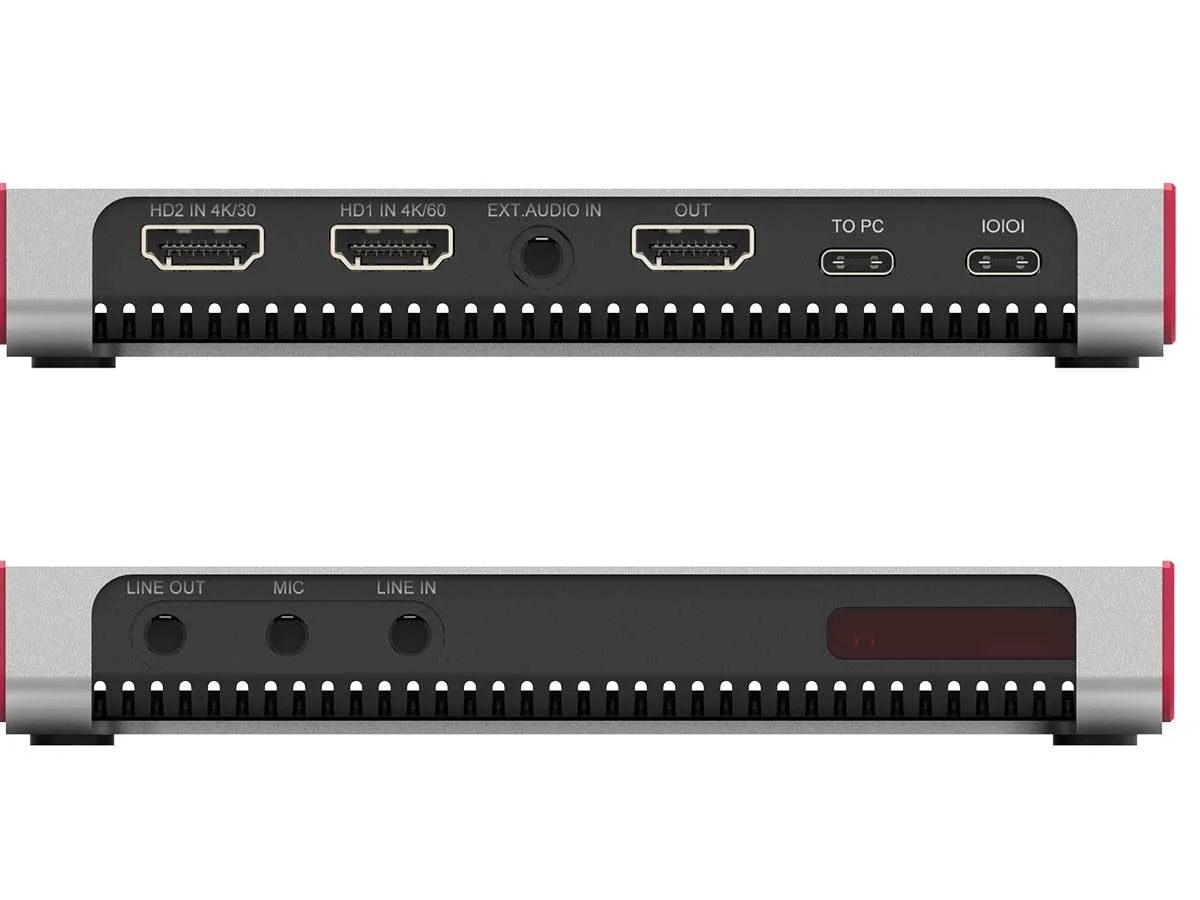

| Input | HDMI1, HDMI2, Line in, Mic in, Ext.Audio in |
| Output | HDMI(pass-through), USB Type-C, Line out |
| Bitrate | Max:140Mbps |
| Input/output Latency | About 17ms |
| Weight | 7.8 oz |
| Dimensions | 5.7 x 4.3 x 0.9 inches |
Supported Resolutions
| HD1 Max Input | 4K@60hz, 1080p@144hz, 1080p@120hz, 1080p@60hz etc; HD2 Max 4K30hz, 1080p120hz, 1080p60 etc |
|---|---|
| HD2 Max Input | 4K@30hz, 1080p@120hz, 1080p@60 etc |
| Video Capture | Up to 1920x1080@60fps |
Unboxed
- ClonerAlliance Flint D4P
- HDMI Cable
- Male Type C to male USB 3.0 cable
- remote control
- Quick Guide

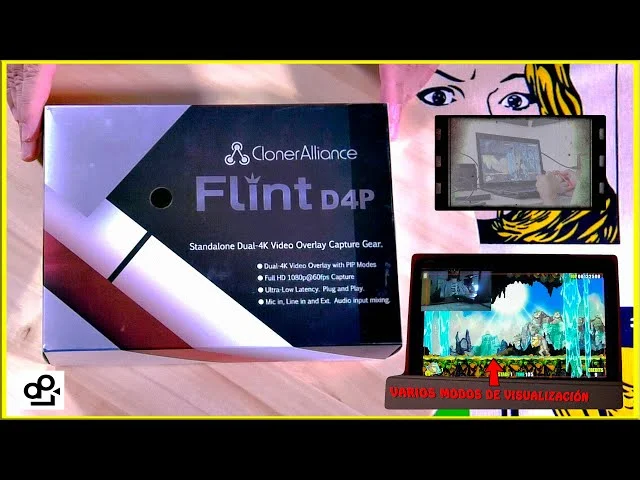

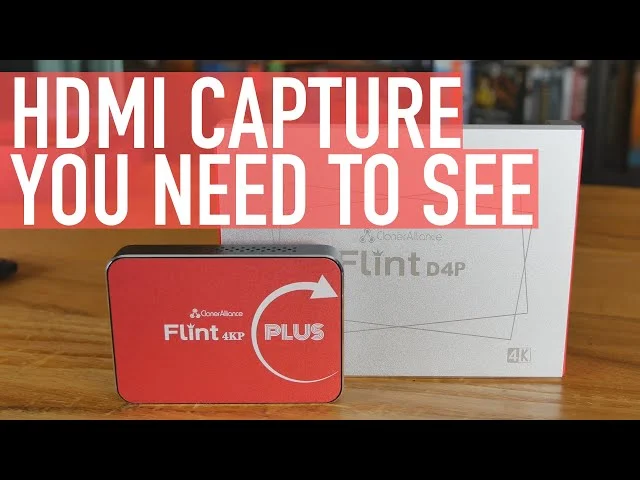

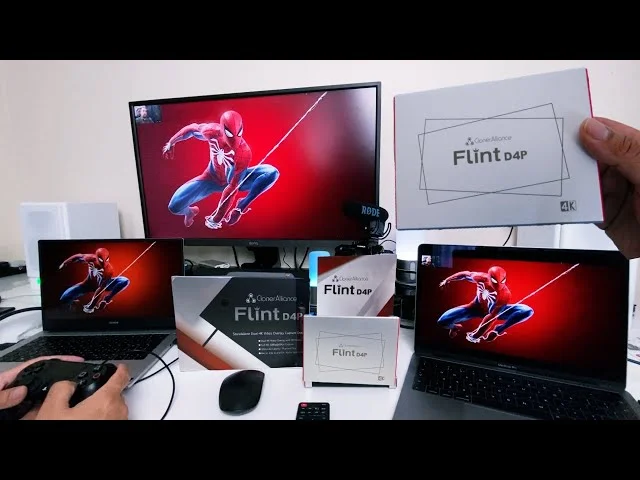

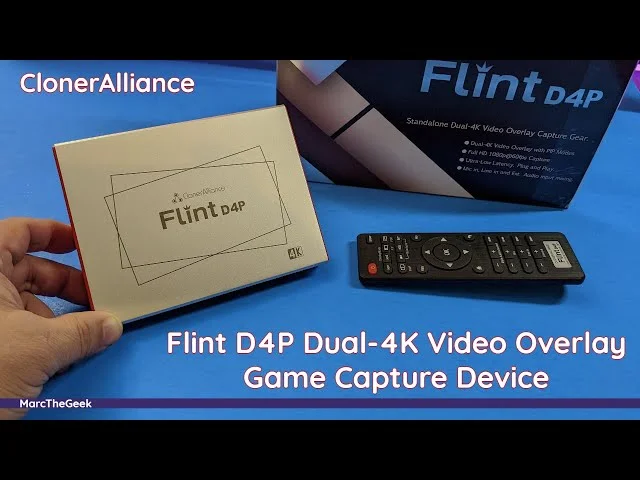

Reviewer's Recommendation
FAQ
How to use ClonerAlliance Flint D4P to record or livestream videos on Windows?
OBS Studio is a popular open source software for video recording and live streaming. If you want to livestream on Windows system, please follow the steps below: Tip: If you got unsync problem in OBS Studio, please follow the instructions below, you can fix it.
Learn more →How to use ClonerAlliance Flint D4P to record or livestream videos on mac?
OBS Studio is a popular open source software for video recording and live streaming. If you want to livestream on mac system, please follow the steps below:
Learn more →My TV or PC displays “Black Screen” when using ClonerAlliance Flint D4P.
After all devices are connected properly, if you got "Black Screen", please press the "Home" button on the remote of ClonerAlliance Flint D4P, if you got the message below. Don't worry. Please press and hold the OK button on the remote of ClonerAlliance Flint D4P about 10 seconds.
Learn more →Why is there a prompt “No signal” when using ClonerAlliance Flint D4P?
Please check your video resolution first. HD1 port supports 4K\@60fps passthrough at most. , HD2 port supports 4K\@30fps passthrough at most. Use your remote to check if the source device has been connected to the correct HDMI port.
Learn more →Why Is There Noise or No Audio When using ClonerAlliance Flint D4P?
In the process of previewing or recording, in case you got no audio or noise, please adjust your source video device's audio setting to PCM/Auto. ClonerAlliance Flint D4P doesn't support Raw Data mode, and supports PCM or Auto setting.
Learn more →Which models of ClonerAlliance hardwares are plug and play for working with Zoom or Skype?
`ClonerAlliance UHD Pro`_ , ClonerAlliance Flint and Chert Series Products work with Zoom or Skype directly.
Learn more →Why don't I get audio from my DSLR in Zoom?
Don't worry. We are sure that issue was caused by the Zoom software. We have found a work-around to fix it. In Zoom, please switch the video to another device. After that, switch it back to the ClonerAlliance Flint/Chert Series Hardware, then the audio will start working.
Learn more →How to use ClonerAlliance Flint D4P to record or livestream videos on Windows?
OBS Studio is a popular open source software for video recording and live streaming. If you want to livestream on Windows system, please follow the steps below: Tip: If you got unsync problem in OBS Studio, please follow the instructions below, you can fix it.
Learn more →Why does OBS Studio only display a black screen with ClonerAlliance Flint Series Products?
The instruction applies to ClonerAlliance Flint LX, ClonerAlliance Flint LXT, ClonerAlliance Flint 4KP, ClonerAlliance Flint 4KP Plus, ClonerAlliance Flint 4KP Pro, ClonerAlliance Flint D4P, and ClonerAlliance Chert 4KC. Note: Please do NOT run HDML-Cloner Pro Helper and OBS Studio at the same time.
