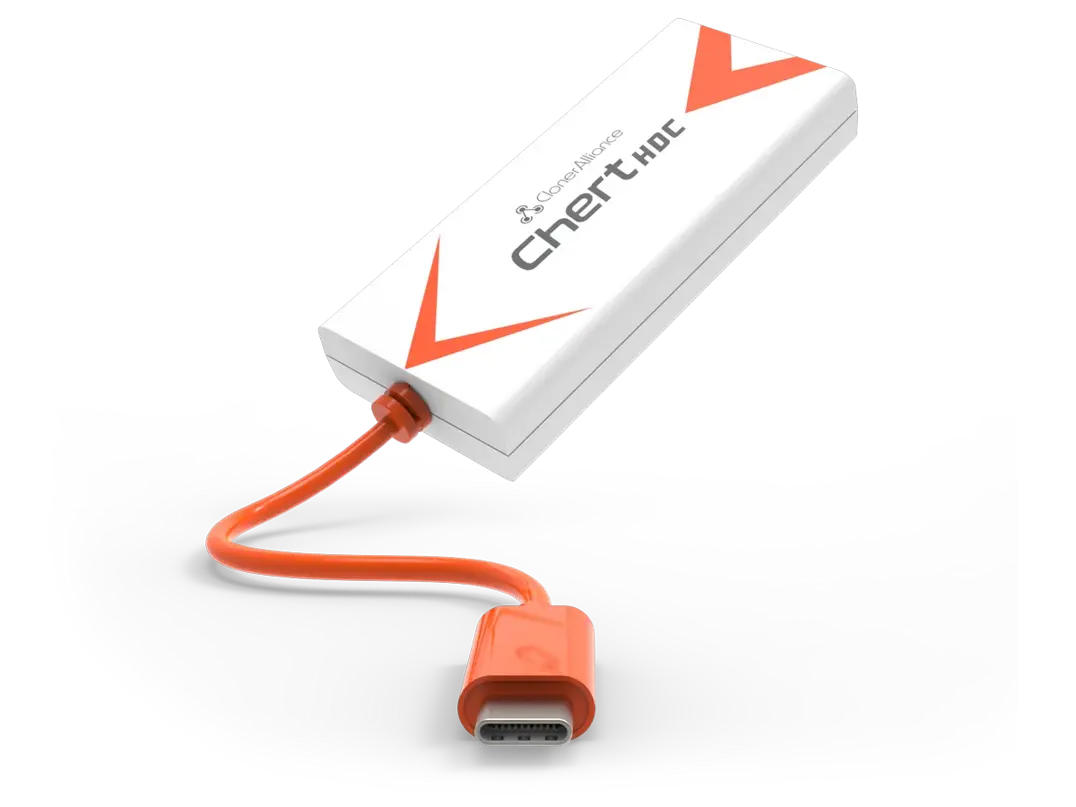

ClonerAlliance Chert HDC
HDMI to USB Type-C Video Capture Card, Plug and Play Video Capture via DSLR, Camcorder to Live Streaming
ClonerAlliance Chert HDC

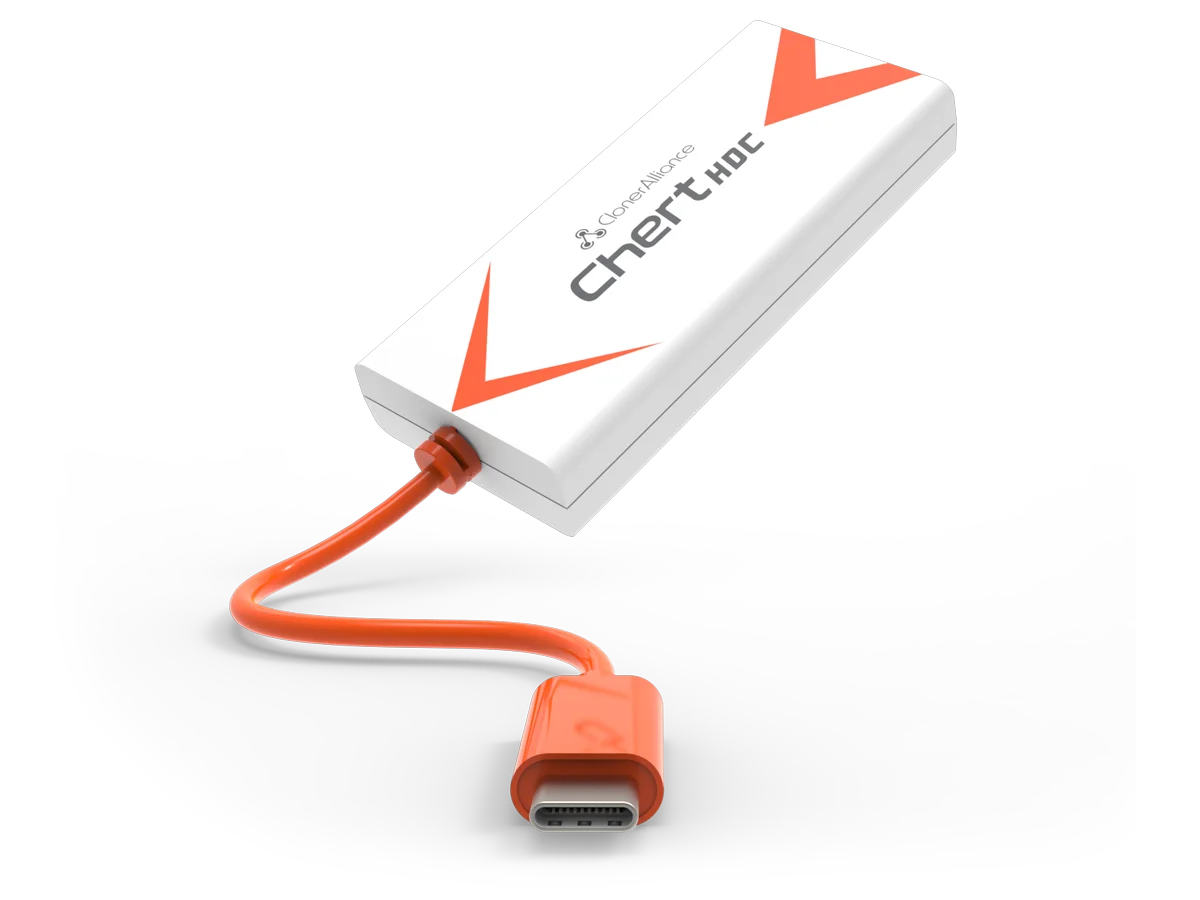

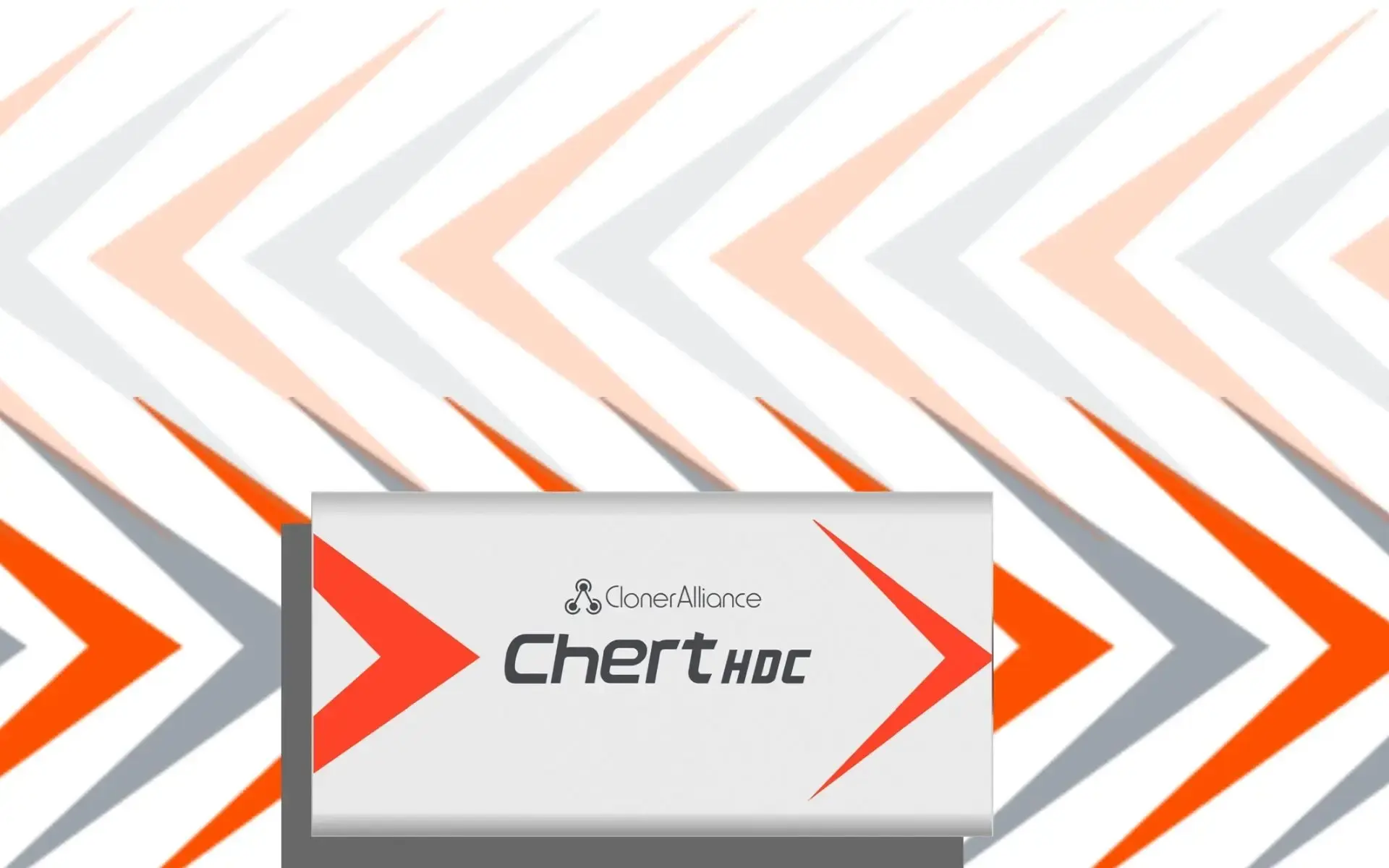

ClonerAlliance Chert HDC is a super portable UVC HDMI to USB 2.0 video capture device. It supports 3840 x 2160@30fps input. No driver is needed, just plug and play.
ClonerAlliance Chert HDC is a super portable UVC HDMI to USB 2.0 video capture device. It supports 3840 x 2160@30fps input. No driver is needed, just plug and play. With universal and high performance USB Type-C plug and Ultra Low Latency technology, you can easily record and live broadcast HDMI videos at 1080p@30fps from video players, set-top boxes, webcams, DSLRs, camcorders and game consoles to Mac, Windows, Linux or Android. You can hook up multiple ClonerAlliance Chert HDC units and input multiple video sources to your laptop to realize PIP live streaming.
Key Features

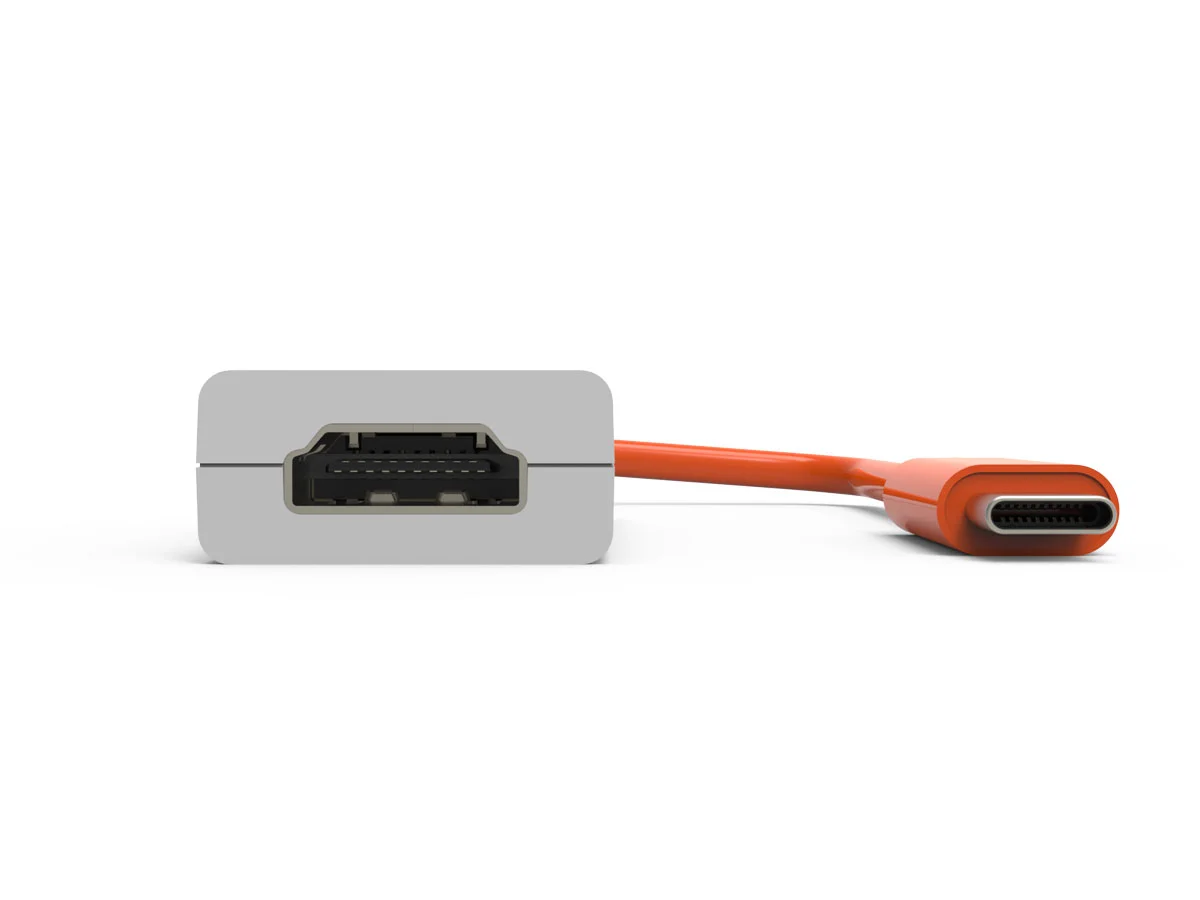

HDMI to USB-C Mini dongle. Compatible with popular models of laptops and mobiles.
4K@30fps input supported - Capture video up to 1080p@30fps. Ultra Low Latency, lower than 90ms.
Multiple platforms supported - Windows, Mac, Linux, and Android. Plug and Play.
Stream and capture your gameplay/videos to YouTube, Twitch, ZOOM, Skype and Facebook instantly through livestreaming software.
Multiple HDMI video capture scenarios
Use Camcorder/DSLR to Go Live.
Specifications
| Input | HDMI |
|---|---|
| Output | USB Type-C |
| Output format | MJPEG,YUY2 |
| Max transmission bitrate | 2Gbps |
| Bitrate | Max:140Mbps |
| Weight | 0.7 oz |
| Dimensions | 2.0 x 1.0 x 0.5 inches |
Supported Resolutions
| Capture Resolutions | 720 x 480(60p/50p/30p), 720 x 576(60p/50p/30p/25p) , 800 x 600(60p/50p/30p/25p), 1280 x 720(60p/50p/30p), 1280 x 960(50p/30p), 1280x 1024(30p/25p),1600x 1200(30p/25p), 1360x 768(30p/25p), 1920x 1080(30p/25p) Up to 30 fps @ 1920x1080 |
|---|---|
| Max Input Resolution | 30fps @ 3840 x 2160 |

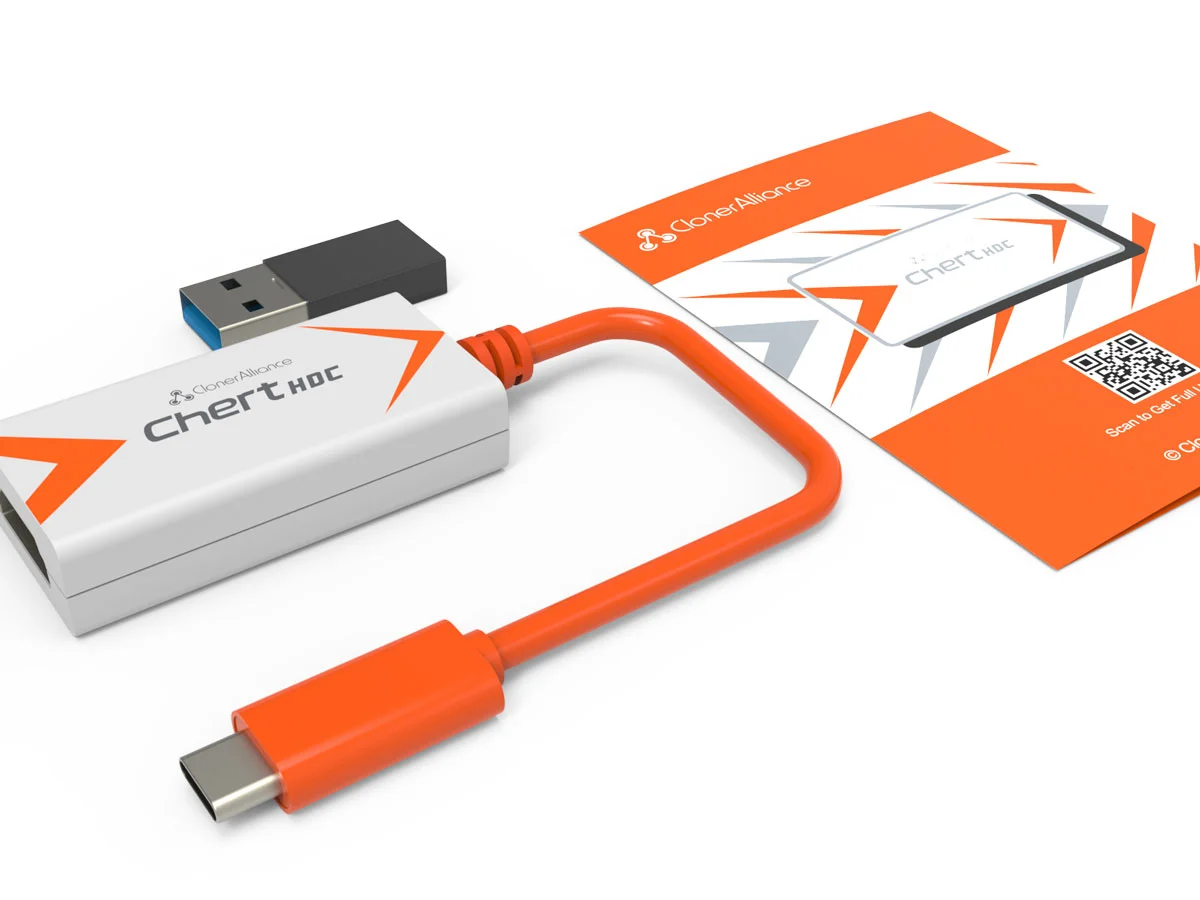

Unboxed
- ClonerAlliance Chert HDC
- USB Type-C to USB Type-A connector
- USB 2.0 female to male connector
- Quick Guide
FAQ
How to setup in OBS with ClonerAlliance Chert HDC device?
Please connect source device to the HDMI input port of ClonerAlliance Chert HDC with HDMI cable and connect ClonerAlliance Chert HDC to PC. Launch OBS Studio software on PC, Click "+" icon under "Sources" window, and select "Video Capture Device".
Learn more →Why Is There No Audio When Running Open Broadcaster Software(OBS) With ClonerAlliance Chert HDC?
Tip: For Mac users, please scroll down to the bottom, there are step by step instructions. First, please make sure sample rate in OBS Studio is also set to 48KHz. Note: It is an important setting, otherwise may cause the bad audio quality issue.
Learn more →How to deal with PC doesn’t recognize ClonerAlliance Chert HDC device?
Please change another USB port and re-plug in, it'll help.
Learn more →Which models of ClonerAlliance hardwares are plug and play for working with Zoom or Skype?
`ClonerAlliance UHD Pro`_ , ClonerAlliance Flint and Chert Series Products work with Zoom or Skype directly.
Learn more →Why don't I get audio from my DSLR in Zoom?
Don't worry. We are sure that issue was caused by the Zoom software. We have found a work-around to fix it. In Zoom, please switch the video to another device. After that, switch it back to the ClonerAlliance Flint/Chert Series Hardware, then the audio will start working.
Learn more →Service
Responsive Support
A professional technical team at your service.
2-Year Warranty
Buy with confidence, covered for two full years.
Free Shipping
Free standard delivery on orders of $60 or more, straight to your door.
