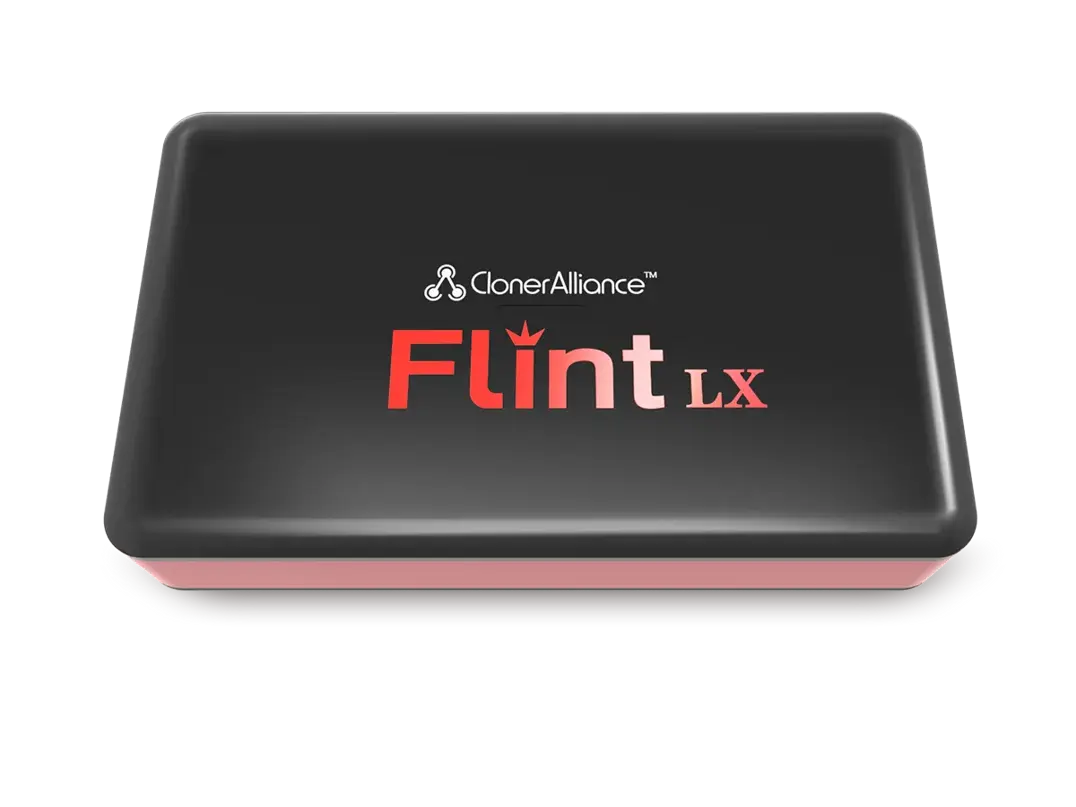

ClonerAlliance Flint LX
1080p 60fps USB 3.0 HDMI Video Capture Device with HDMI Passthrough.

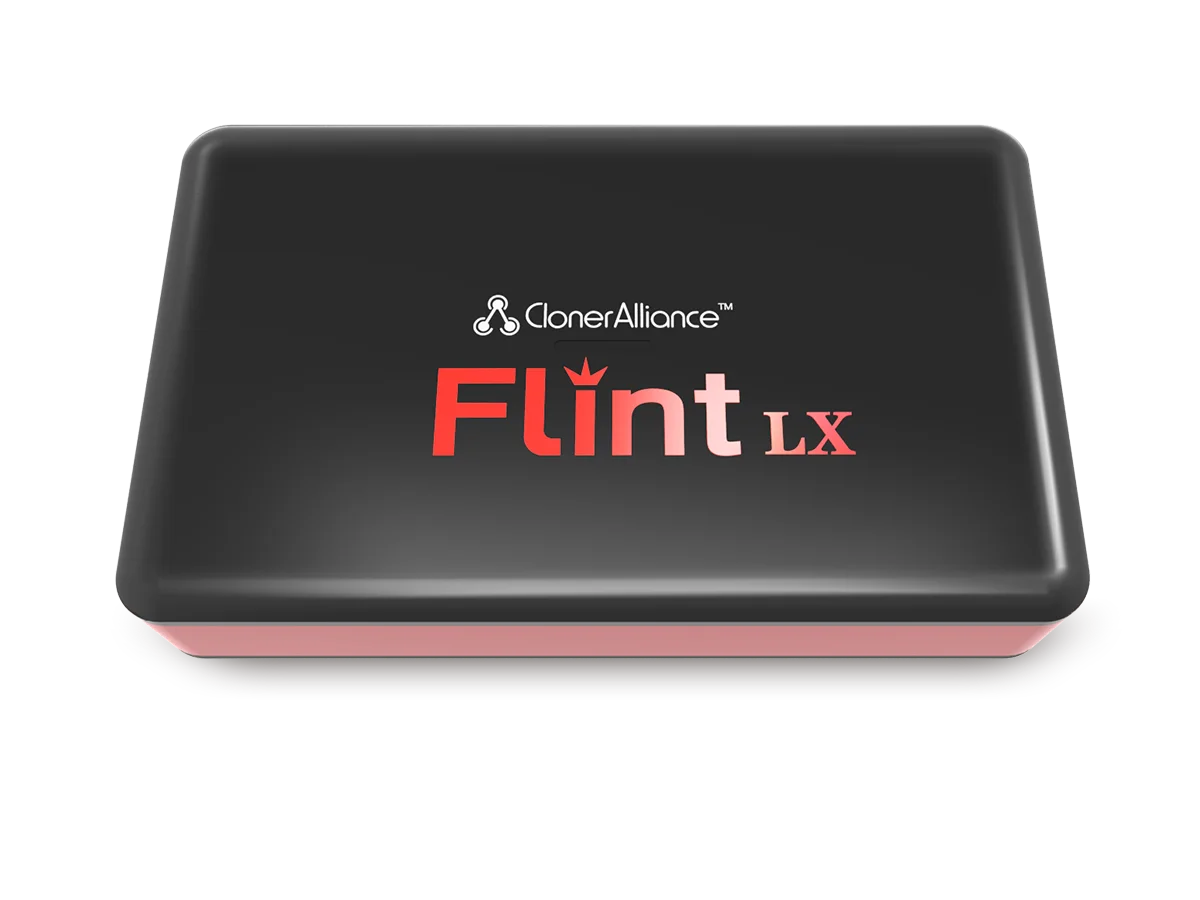

ClonerAlliance Flint LX
ClonerAlliance Flint LX is a portable HDMI to USB 3.0 game capture device to stream and record your HDMI videos and gameplay at up to 1080p 60fps. Just connect this game capture card to your PC, Mac or Android device, no need to install the driver, and you can use any 3rd party software to capture or broadcast your Full HD games or videos.
ClonerAlliance Flint LX is a portable HDMI to USB 3.0 game capture device to stream and record your HDMI videos and gameplay at up to 1080p 60fps. Just connect this game capture card to your PC, Mac or Android device, no need to install the driver, and you can use any 3rd party software to capture or broadcast your Full HD games or videos. It supports various HDMI input devices such as game console, video player, set-top box, etc.
Key Features
1080p 60fps uncompressed video capture with HDMI out.

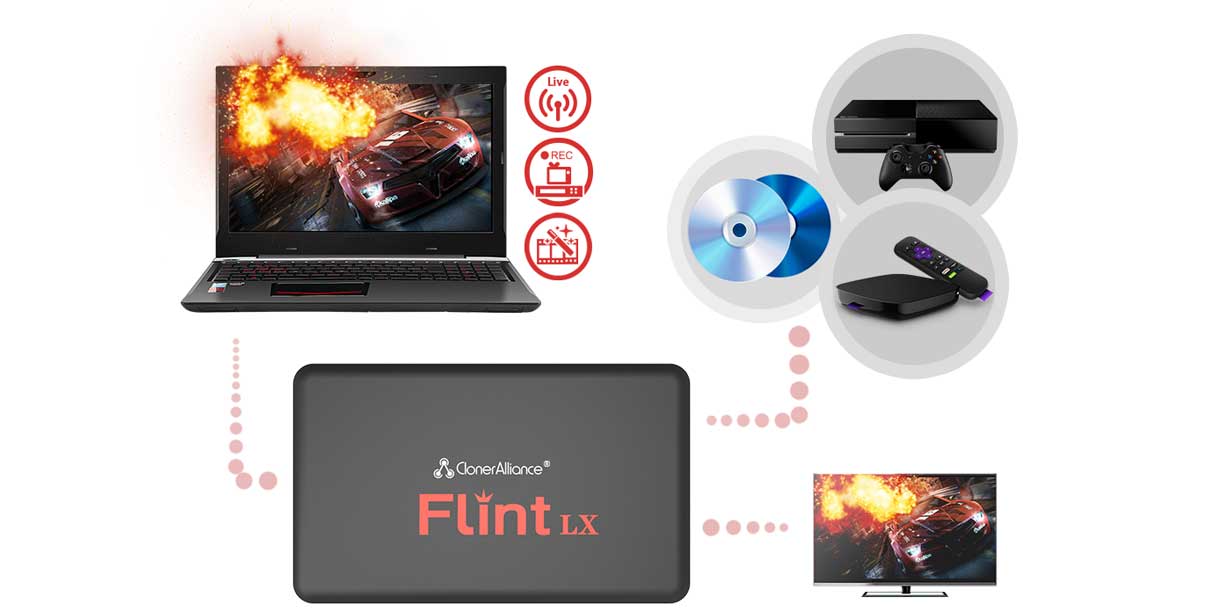

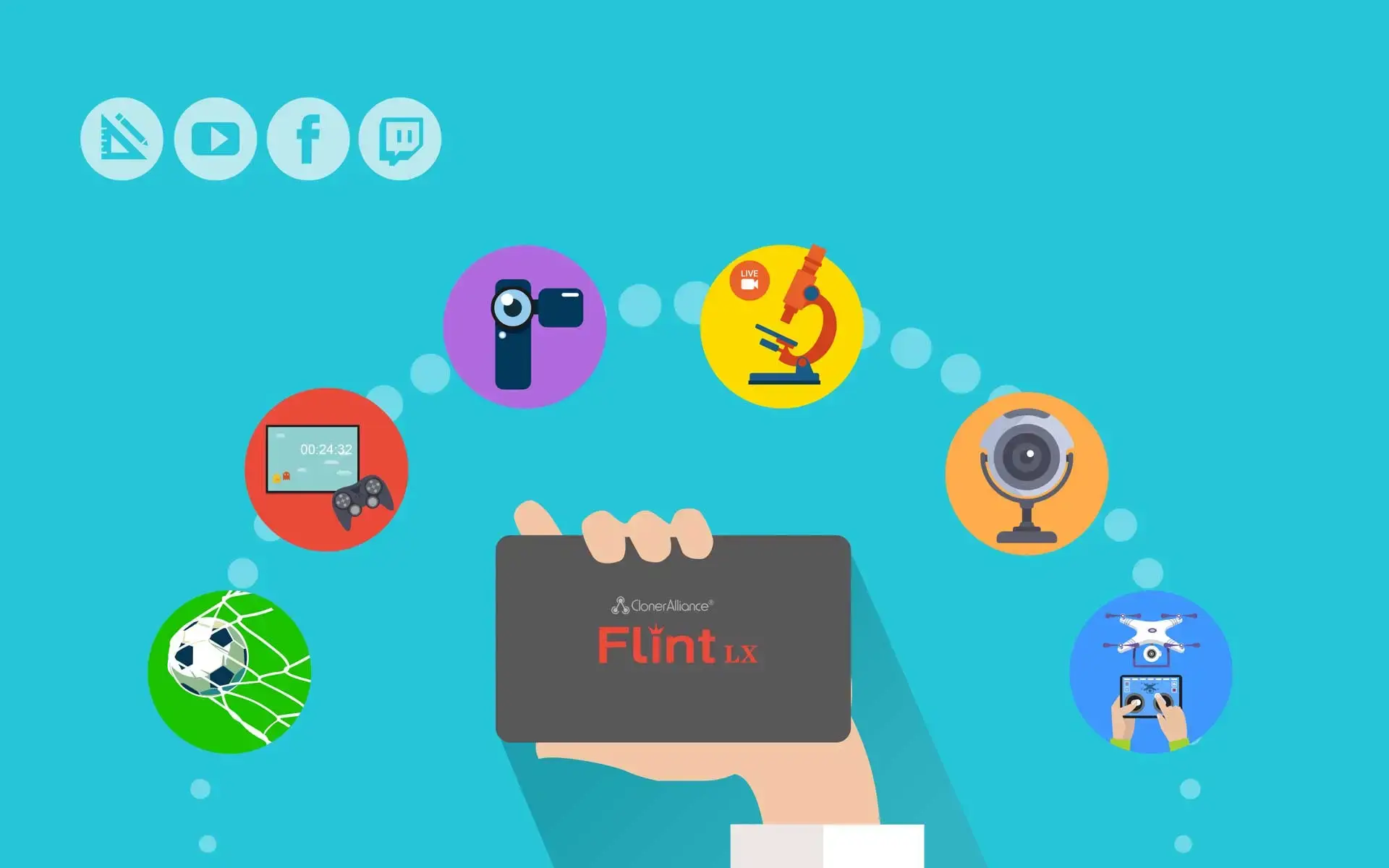

Supports a wide range of HDMI media devices, including game console, video player, set-top box, etc.
USB 3.0 high speed connection, stream and capture with ultra low latency.
Plug and Play, UVC standard. Compatible with Android, Windows, Mac and Linux.
1080p 60fps video capture. Ultra low latency.

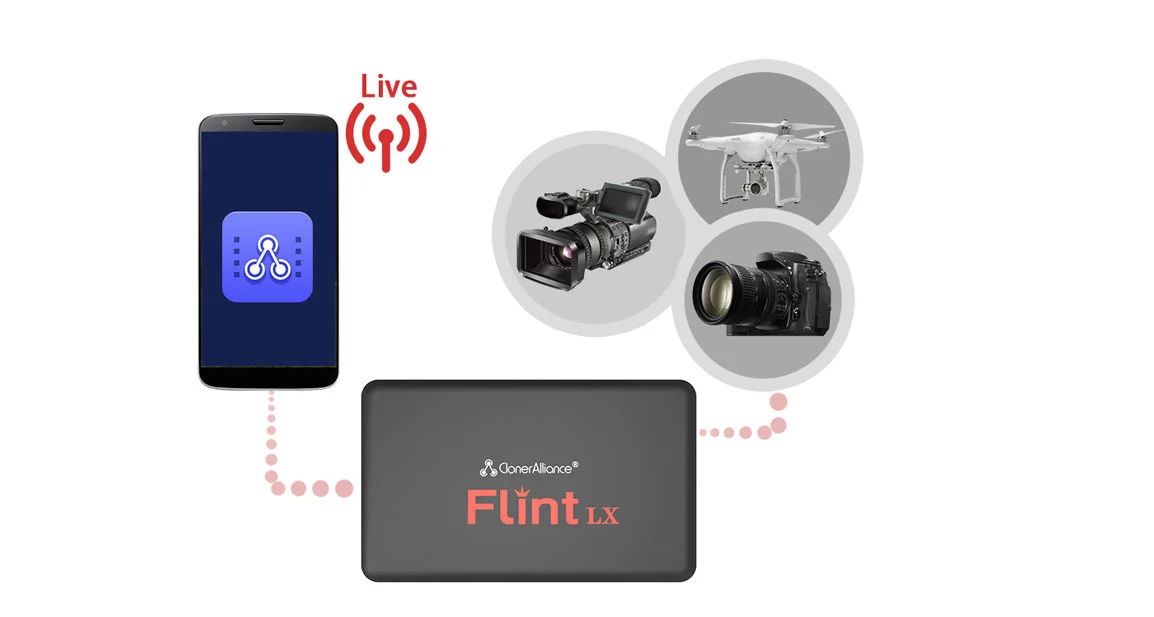

Use Camcorder/DSLR as Webcam. Highly compatible.
Specifications
| Output format | MJPEG,YUY2 |
|---|---|
| Video standards (input) | NTSC, PAL |
| Input | HDMI |

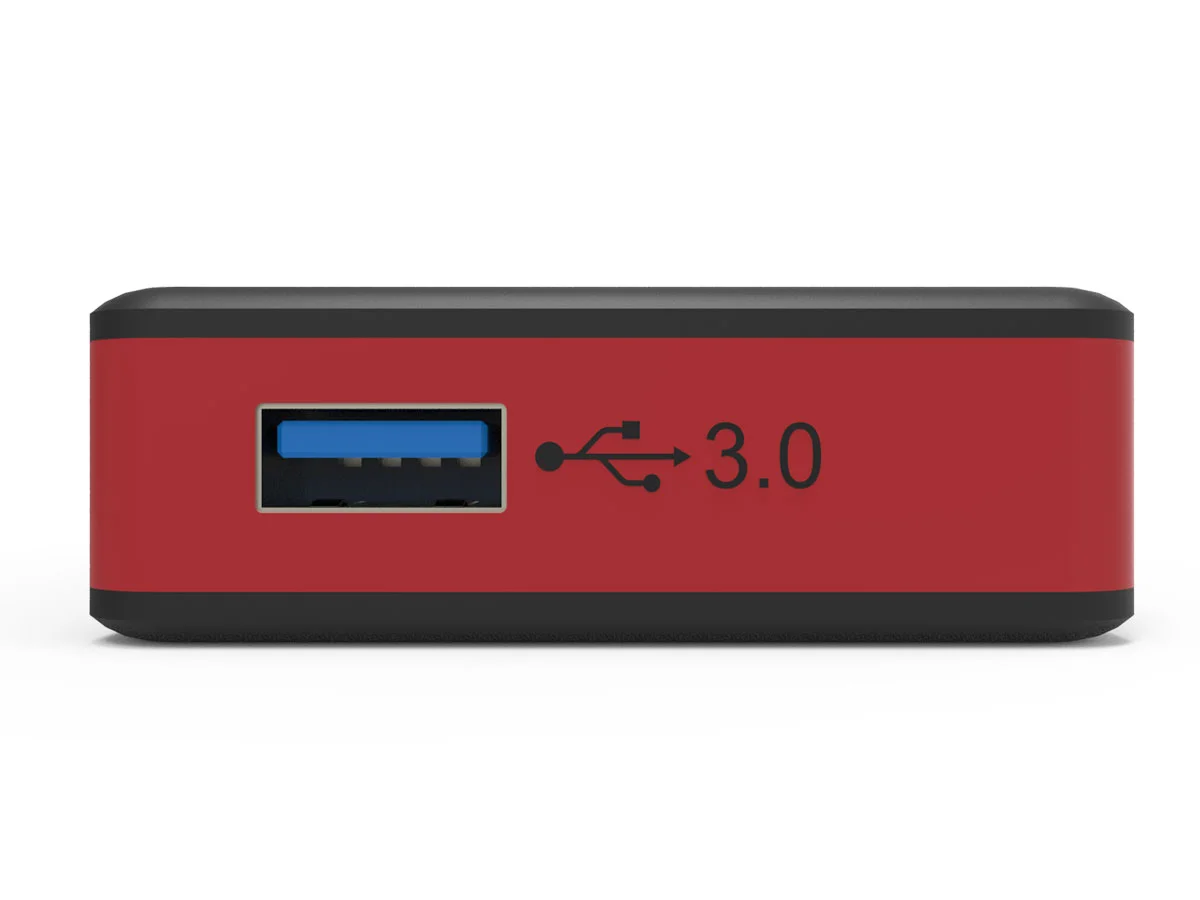

| Output | HDMI (pass-through), USB 3.0 Type-A |
| Capture frame rates | Up to 60 fps @ 1920x1080 |
| Aspect ratio | 16:9, 4:3 |
| Weight | 1.4 oz |
| Dimensions | 3.7 x 1.5 x 0.8 inches |
Supported Resolutions
| Input resolution | 3840*2160(30HZ), 1920x1080, 1280x1024, 1280x720, 1024x768, 600x1200, 800x600, 720x576, 720x480, 640x480 |
|---|---|
| Capture resolution | 1920x1080, 1280x1024, 1280x720, 600x1200, 1024x768, 800x600, 720x576, 720x480, 640x480 |

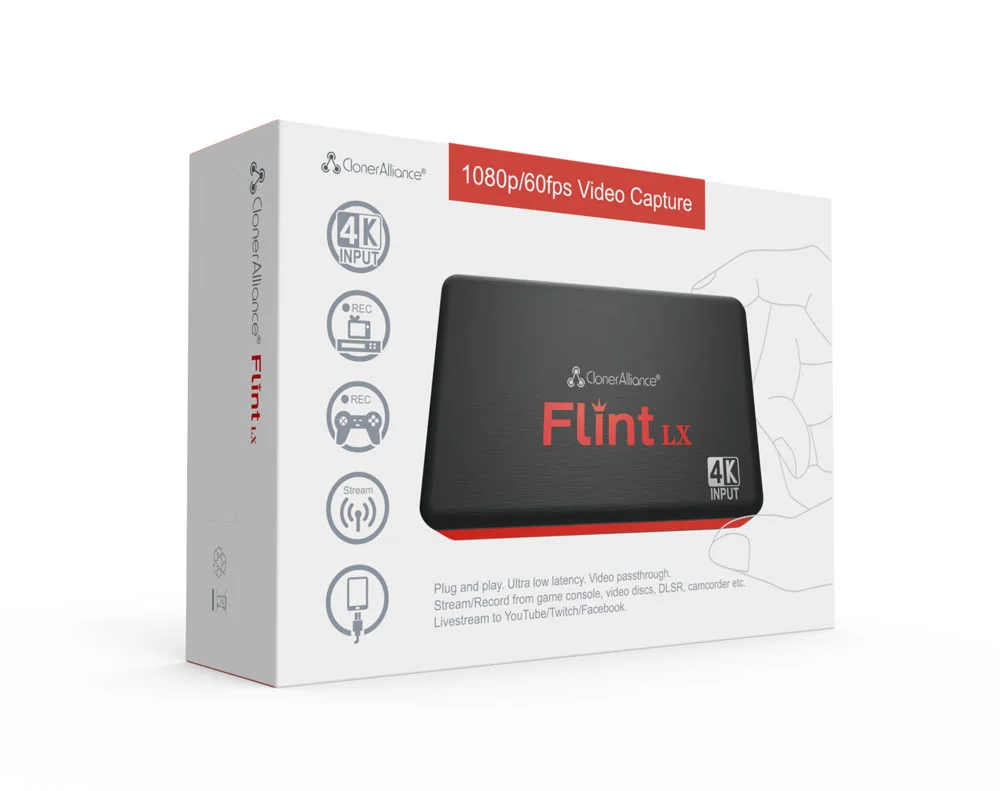

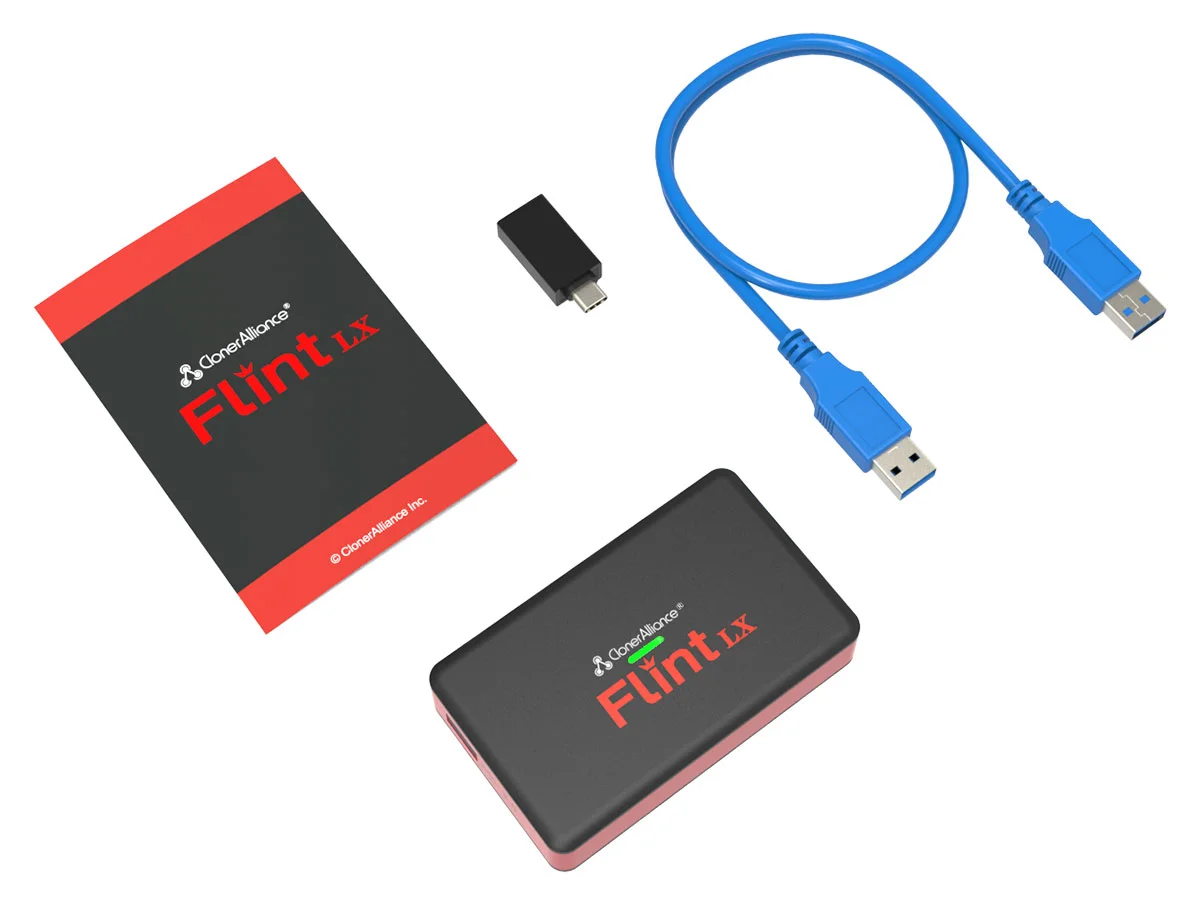

Unboxed
- ClonerAlliance Flint LX
- USB 3.0 cable
- Type-A to Type-C adapter
- Quick Guide

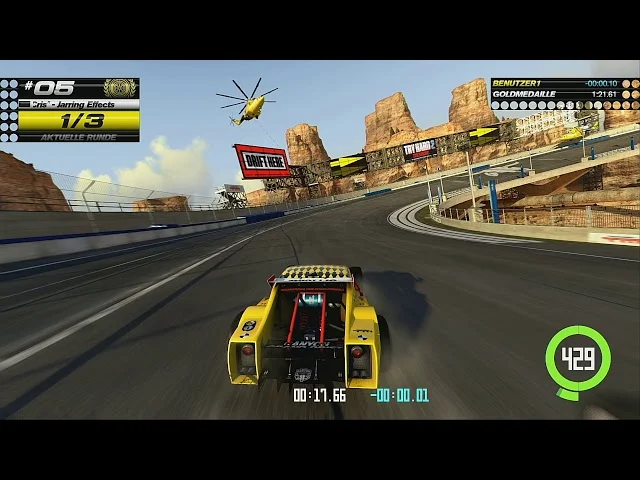

Reviewer's Recommendation
FAQ
How to use ClonerAlliance Flint LX to record or livestream videos on Windows?
OBS Studio is a popular open source software for video recording and live streaming. If you want to livestream on Windows system, please follow the steps below: Tip: If you got unsync problem in OBS Studio, please follow the instructions below, you can fix it.
Learn more →How to use ClonerAlliance Flint LX to record or livestream videos on mac?
OBS Studio is a popular open source software for video recording and live streaming. If you want to livestream on mac system, please follow the steps below:
Learn more →Why Is There No Audio When running Open Broadcaster Software(OBS) with ClonerAlliance Flint LX/LXT?
Please adjust the setting of OBS accordingly, it could be resolved easily. #. Select "Output desktop audio(DirectSound)" in "Audio Out Mode" first. #. Mark "Use custom audio device" and you will see "CA FLINT Audio". Please click "ok" and you could hear the audio now.
Learn more →Which models of ClonerAlliance hardwares are plug and play for working with Zoom or Skype?
`ClonerAlliance UHD Pro`_ , ClonerAlliance Flint and Chert Series Products work with Zoom or Skype directly.
Learn more →Why don't I get audio from my DSLR in Zoom?
Don't worry. We are sure that issue was caused by the Zoom software. We have found a work-around to fix it. In Zoom, please switch the video to another device. After that, switch it back to the ClonerAlliance Flint/Chert Series Hardware, then the audio will start working.
Learn more →Why are the video and audio out of sync while ClonerAlliance Flint series products working with OBS?
Strongly Recommended: Please Do install HDML-Cloner Pro Helper(2.1 or above) on your computer. Generally, you won't get the issue any more. If you are Mac/Linux users or really don't want to install HDML-Cloner Pro Helper, It could be resolved by adjusting a few settings.
