ClonerAlliance UHD Lite
Record 4K Video and Play Back Instantly
ClonerAlliance UHD Lite
ClonerAlliance UHD Lite is the first genuine 4K standalone video recorder box on the market. You can easily record HDMI videos from set-top boxes, webcams, DSLRs, camcorders and game consoles to USB flash drive to external hard drive at up to 4K@30fps.
ClonerAlliance UHD Lite is the first genuine 4K standalone video recorder box on the market. You can easily record HDMI videos from set-top boxes, webcams, DSLRs, camcorders and game consoles to USB flash drive to external hard drive at up to 4K@30fps. It also supports 1080p@60fps and 720p video recording. Press one button on the recorder box or remote control, you can play back the recorded videos saved on the USB storage device on TV directly. H.265 encoding technology is adopted to save space and improve picture quality. It includes HDMI, Microphone, Line in and Line out port.
Key Features
Record 4K videos/gameplay to your USB storage devices. No need for PC!

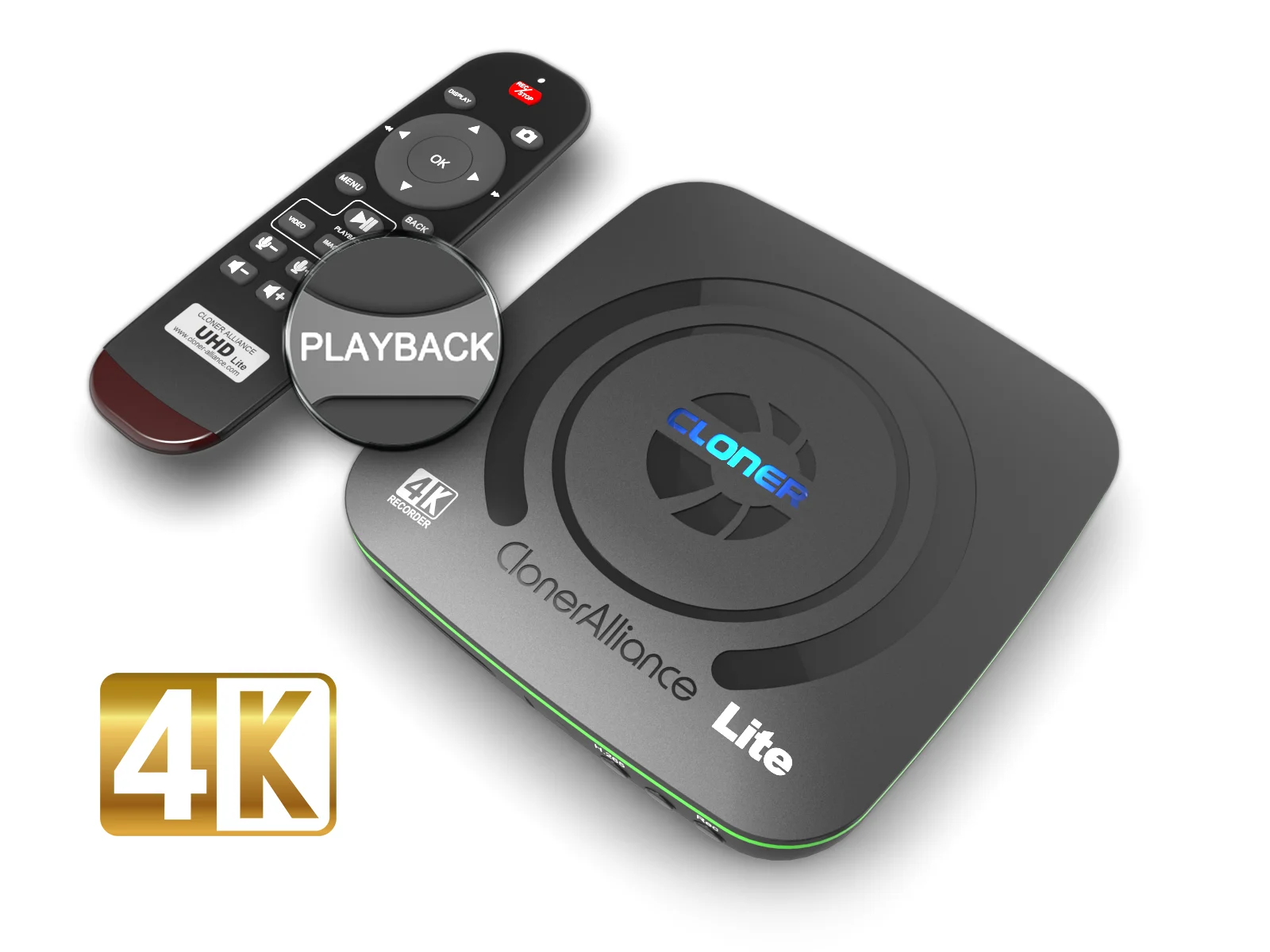

Press one button on remote and enjoy the recorded videos instantly.
4K@30fps, 1080p, 720p recording resolutions supported
Real-time HDMI pass-through and Capture live commentary or voice-over
Genuine 4K Video Recorder for Your HDMI Stuff
Standalone video recorder box. Free up your PC!
Specifications
| Video standards (input) | NTSC, PAL |
|---|---|
| Supported disk formats | FAT32, NTFS, exFAT, GPT, MBR |
| Input | HDMI, MIC IN, LINE IN |
| Output | HDMI (pass-through), USB, LINE OUT |
| Bitrate | Max-30Mbps |
| Power supply | DC 5V, 2A |
| Weight | 8.5 oz |
| Dimensions | 4.6 x 4.6 x 1.1 inches |
| Image formats | JPG |
| Video formats | MP4(Video codec:H.265/HEVC, H.264) |
Supported Resolutions
| Input | 3840x2160 (60p) 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) 1920x1080 (50i), 1920x1080 (60i), 1360x768 (60p), 1280x1024 (60p) 1280x720 (60p), 1280x768 (60p), 1280x800 (60p), 1024x768 (60p) 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) |
|---|---|
| Output | 3840x2160 (30p) 1920x1080 (60p), 1280x720 (60p), 1024x768 (60p) 1280x800 (60p), 1360x768 (60p) |
| Standalone Recording | 3840x2160 (30p), 1920x1080 (60p)1920x1080 (30p), 1280x720 (60p), 1024x768 (60p) 1280x800 (60p), 1360x768 (60p) |

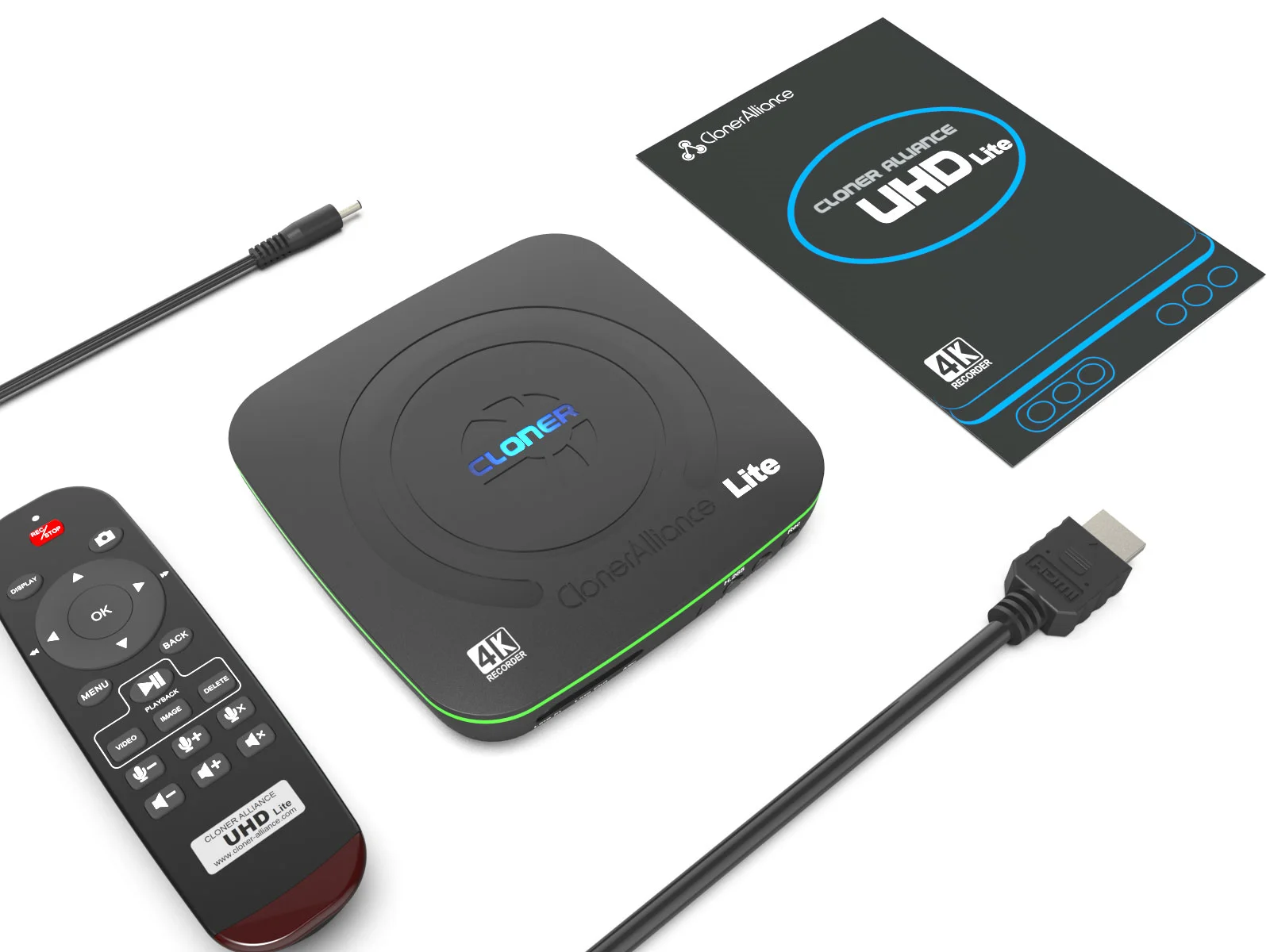

Unboxed
- ClonerAlliance UHD Lite
- Remote Control
- HDMI Cable
- Power Adapter
- Quick Guide
FAQ
Why does the "HDMI IN" field of OSD show "Please scan QR" after connecting HDMI cable with ClonerAlliance UHD Lite?
Please confirm that all cables and devices are connected properly. If this problem keeps showing up, you may be using an unsupported video source content. Please change the video source and try again. For detail, please see https://www.cloner-alliance.com/unsupported-content.
Learn more →How to playback the recorded video files on the USB storage device?
There are three ways to playback the files ClonerAlliance UHD Pro recorded.
Learn more →How to record videos to the USB Storage device with ClonerAlliance UHD Lite?
For better user experience, please use a premium USB flash drive or mobile hard disk with high quality to avoid problems caused by disk quality. Tip: The USB flash drive is not included in the product box. You need to purchase it separately.
Learn more →What do different colors of the LED light indicate?
Why can't I switch H.264 to H.265?
ClonerAlliance UHD Pro supports both H.264 and H.265 encoding. You can switch between H.264 and H.265 through the OSD menu: navigate to Record Settings > Video Codec. Please note that the codec selection is only available when a USB storage device or TF card is connected to ClonerAlliance UHD Pro.
Learn more →Service
Responsive Support
A professional technical team at your service.
2-Year Warranty
Buy with confidence, covered for two full years.
Free Shipping
Free delivery on all orders, straight to your door.
User Manual
Open PDF (v1.3.0) →
